Description

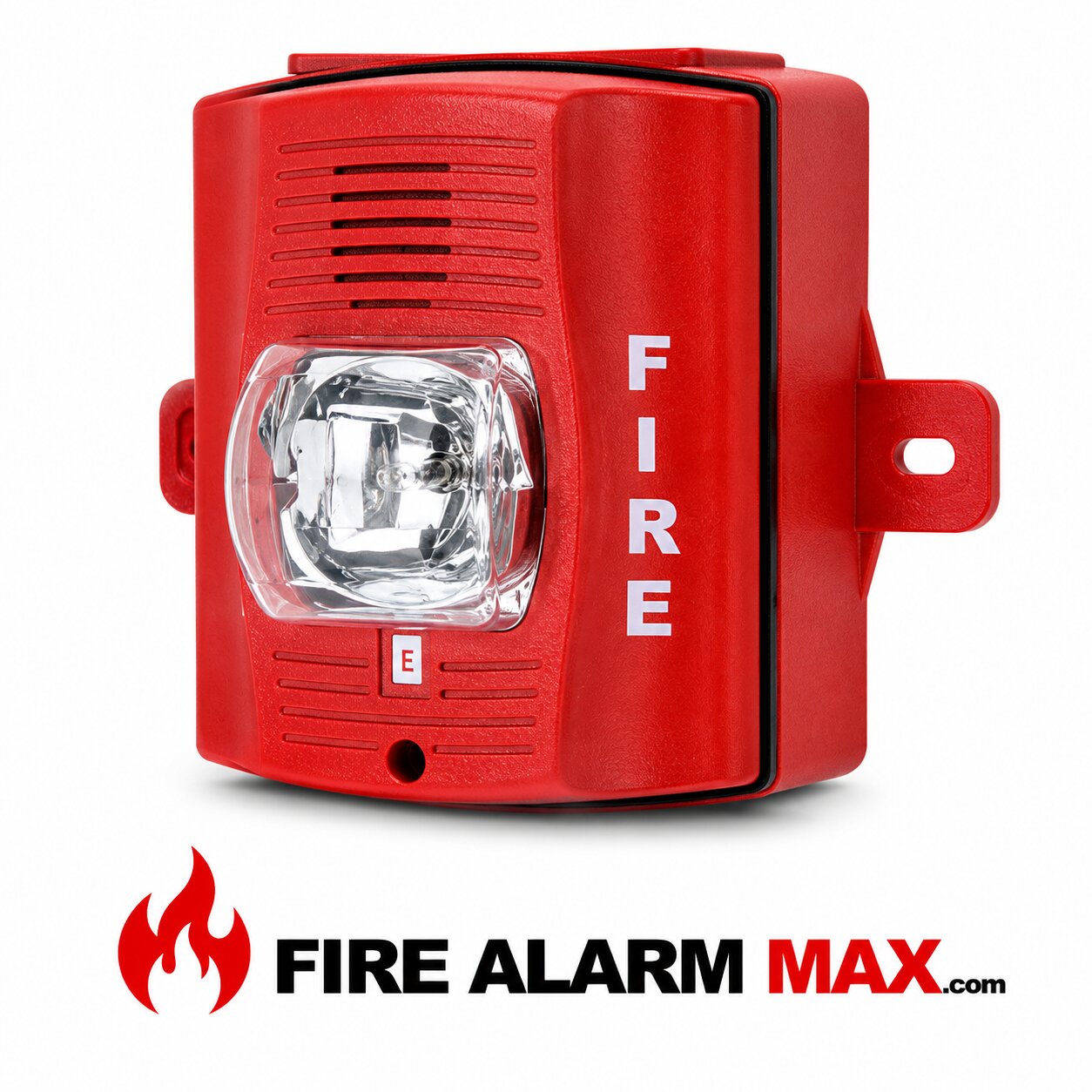

SpectrAlert Advance offers the industry’s broadest line of outdoor horns, strobes, and horn strobes. Available with white or red plastic housings, they come with wall or ceiling mounting options. The devices are available as plain or FIRE-printed models. The System Sensor P2RHK can meet virtually any application requirement, including indoor, outdoor, wet, and dry environments, and it operates in temperatures ranging from −40°F to 151°F.

Like the entire SpectrAlert Advance line, these outdoor horns, strobes, and horn strobes for wall applications offer various features to increase flexibility and simplify installation. For example, field-selectable settings allow you to choose candela levels, select 12- or 24-volt operation, and choose from multiple horn tones and three-volume options. These features make it easy for installers to adapt the devices to meet specific requirements.

Additionally, the System Sensor P2RHK uses a universal mounting plate that works for both wall and ceiling applications. This plate includes an onboard shorting spring, which ensures wiring continuity before installation. As a result, installers can verify proper wiring without mounting the devices, reducing the risk of construction damage. Once the mounting plates are installed, all SpectrAlert Advance devices use a plug-in design with a single captured screw. This feature speeds up installation and minimizes costly ground faults.

Features / Specifications:

• Weatherproof per NEMA 4X, IP56
• Field-selectable candela settings: 135, 150, 177, and 185
• Automatic selection of 12- or 24-volt operation at 15 and 15/75 candela
• Rotary switch for horn tone and three volume selections
• Universal mounting plate with an onboard shorting spring to test wiring continuity before installation
• Plug-in design with minimal intrusion into the back box
• Tamper-resistant construction

Download the Specification sheet in *.pdf format
