Description

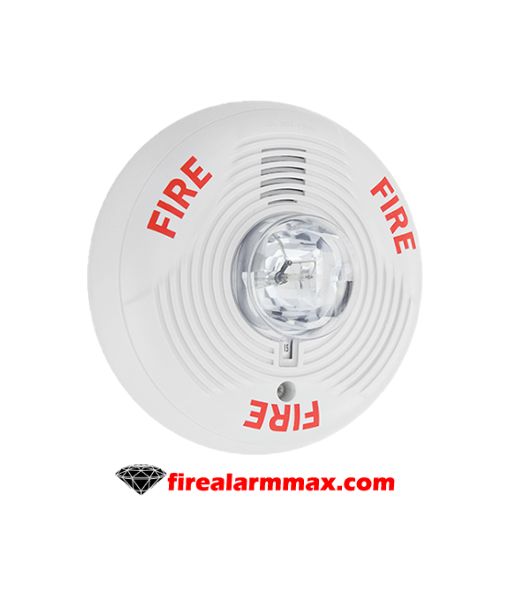

The System Sensor PC2W series offers the most versatile and easy-to-use line of horns, strobes, and horn strobes in the industry. Also, with white and red plastic housings, wall and ceiling mounting options, and plain and FIRE-printed devices, SpectrAlert Advance can meet virtually any application requirement.

Like the entire SpectrAlert Advance product line, ceiling-mount strobes and horn strobes include a variety of features that increase their application versatility while simplifying installation. All devices feature  making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults.

To further simplify installation, System Sensor PC2W utilizes a universal mounting plate so you can mount them to a wide array of back boxes. With an onboard shorting spring, installers can test wiring continuity before the device is installed.

Installers can also easily adapt devices to a suit a wide range of application requirements using field-selectable candela settings, automatic selection of 12- or 24-volt operation, as well as a rotary switch for horn tones with three volume selections

Features / Specifications

• Tamper-resistant construction
• Automatic selection of 12- or 24-volt operation at 15 and 15/75 candela
• Field-selectable candela settings on ceiling units: 15, 15/75, 30, 75, 95, 110, 115, 135, 150 177, and 185
• Horn rated at 88+ dBA at 16 volts
• Rotary switch for horn tone and three volume selections
• Mounting plate shorting spring feature checks wiring continuity before device installation
• Universal mounting plate for ceiling units
• Plug-in design with minimal intrusion into the back box
• Electrical compatible with legacy SpectrAlert devices
• Compatible with MDL3 sync module
• Listed for ceiling or wall mounting

Download the Specification sheet in *.pdf format
