Description

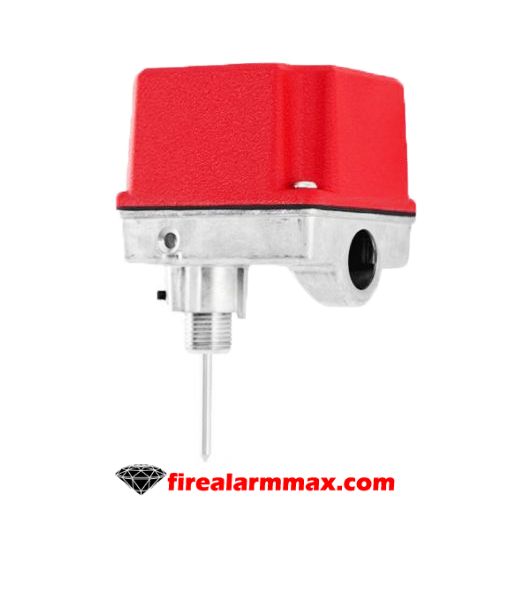

The System Sensor PIBV2 is a switch that monitors open post indicators and control valves. Also, the PIBV2’s rugged housing is intend for indoor and outdoor use. When installed with the actuator in the vertical position, the PIBV2 is NEMA 3R rate per UL. The PIBV2 features a flexible design, which accommodates post indicator, butterfly, and many other types of wall post, recessed wall post and pressure reducing valves. The PIBV2’s unique bi-directional actuator allows the unit to be install in either rising or falling flag installations.

Installation is make easier with the PIBV2’s single-side conduit entrance. By providing a direct conduit pathway to the electrical source, right-angle fittings are not require. Installation is further simplified by the PIBV2’s adjustable length actuator with a convenient breakaway feature for installation on shorter valves. This eliminates the need for cutting the shaft.

The System Sensor PIBV2 has 100 percent synchronization which activates the alarm panel and local bell simultaneously. In addition, the switch is designed to operate in temperatures ranging from –40°F to 120°F (–40°C to 49°C). Besides, the PIBV2 is equip with tamper-resistant cover screws to prevent unauthorized entry. Inside, two sets of SPDT (Form C) synchronized switches are enclosed in a durable terminal block to assure reliable performance.

Features/ Specifications

• NEMA 3R rated enclosure
• Bi-directional actuator
• Easy single side conduit entry
• Adjustable length actuator with breakaway feature
• Built to accommodate up to 12 AWG wire
• Two sets of SPDT contacts enclosed in a durable terminal block
• 100 percent synchronization activates alarm panel and local bell simultaneously
• Operating temperature range –40°F to 120°F (–40°C to 49°C)
• Tamper resistant cover screws
