Description

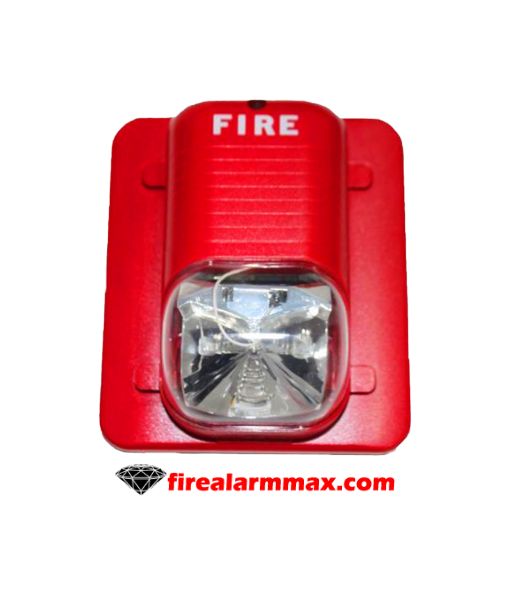

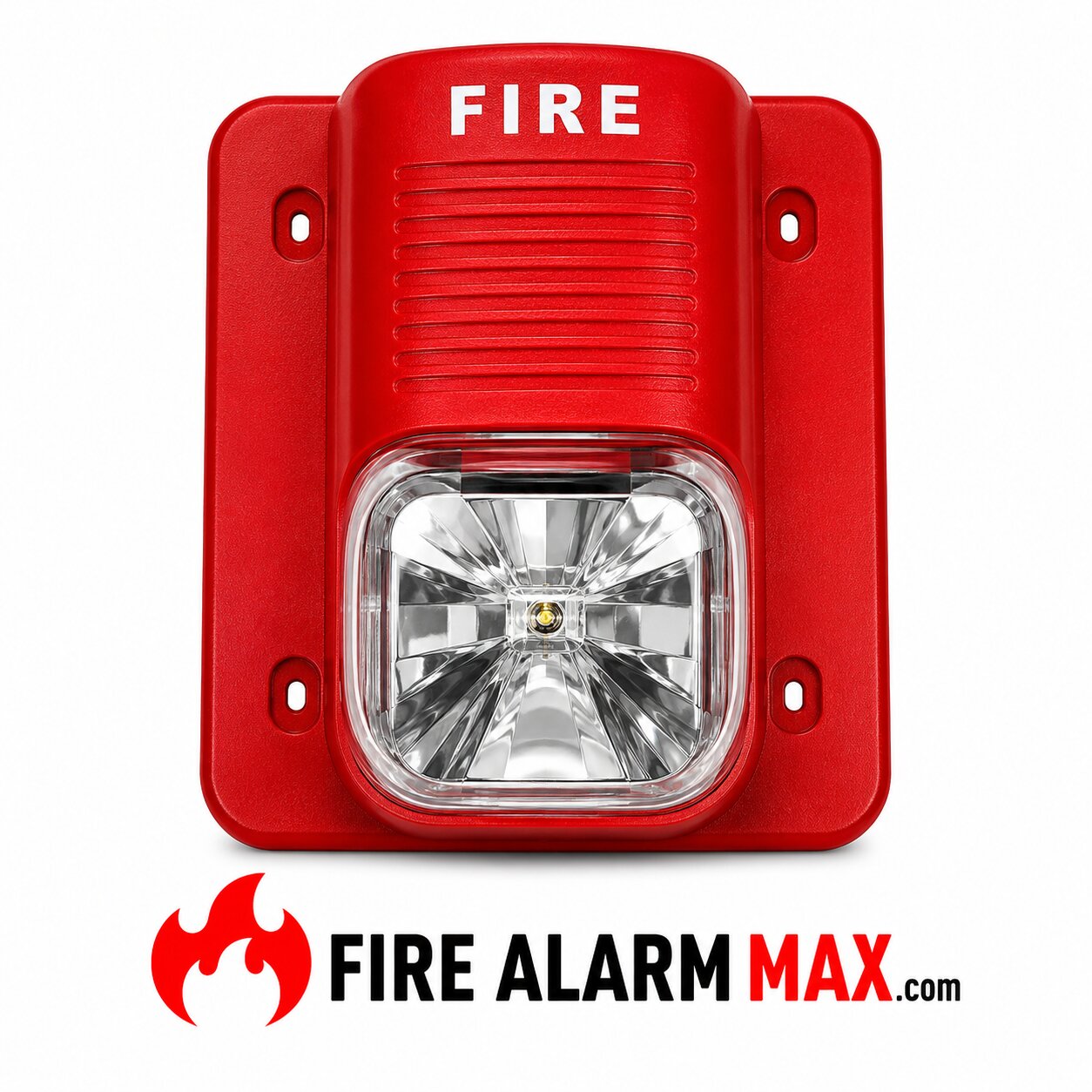

The System Sensor S2415 Wall Strobe is a high-performance 24-volt visual notification appliance designed to provide dependable emergency signaling in commercial and institutional fire alarm systems. Featuring a 15-candela xenon strobe in a durable red housing, the System Sensor S2415 delivers bright visual notification while meeting ADA and UL requirements for life safety applications. Therefore, it provides reliable occupant notification in offices, schools, healthcare facilities, retail spaces, and other commercial environments.

System Sensor S2415 Function

The System Sensor S2415 is designed to provide highly visible emergency notification during fire alarm events. As a result, building occupants receive immediate visual warning, making the device especially valuable in areas where audible notification alone may not be sufficient. In addition, the strobe is compatible with regulated DC and full-wave rectified (FWR) power supplied by compatible fire alarm control panels and power supplies.

15-Candela Visual Notification

The S2415 features a 15-candela xenon flash tube that produces a bright 1 Hz flash rate for effective visual signaling. Consequently, it satisfies visual notification requirements for many commercial applications while providing dependable performance throughout its operating voltage range. Moreover, the 15-candela output is well suited for corridors, offices, classrooms, and other non-sleeping areas requiring ADA-compliant visual notification.

Universal Mounting Plate

The System Sensor S2415 includes a universal mounting plate that supports installation on standard 4-inch square back boxes and single-gang electrical boxes. As a result, installation is faster and wiring is simplified because the strobe occupies no additional backbox space. Additionally, optional mounting accessories are available for surface-mount and small-footprint applications.

Sync Module Compatibility

The S2415 is compatible with the System Sensor Sync•Circuit™ Module, allowing multiple strobes to flash in synchronization throughout a facility. Therefore, installers can create a coordinated visual notification system that improves occupant awareness while meeting applicable code requirements. Furthermore, synchronization minimizes the disorienting effect of unsynchronized flashing appliances.

Reliable Commercial Construction

Manufactured by System Sensor, the S2415 is engineered for dependable long-term performance in demanding indoor environments. Consequently, it provides reliable visual notification for critical life safety systems while reducing maintenance requirements. Moreover, its durable red housing offers high visibility and is specifically designed for fire alarm notification applications.

Technical Specifications

• Model: S2415
• Type: Wall-Mount Strobe
• Housing Color: Red
• Operating Voltage: 24 VDC / Full-Wave Rectified (FWR)
• Operating Voltage Range: 20–30 VDC
• Candela Rating: 15 cd
• Flash Rate: 1 Flash Per Second (1 Hz)
• Light Source: Xenon Flash Tube
• Mounting: Wall Mount
• Mounting Plate: Universal Mounting Plate Included
• Compatible Back Boxes: 4-Inch Square or Single-Gang Electrical Box
• Synchronization: Compatible with System Sensor Sync•Circuit™ Module
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• Power Supply: Regulated DC or Full-Wave Rectified (FWR)
• Listings: UL 1971, UL 1638, ADA Compliant
• Application: Indoor Fire Alarm Notification Appliances

Applications

The System Sensor S2415 Wall Strobe is ideal for:

• Fire alarm systems
• Commercial office buildings
• Educational facilities
• Healthcare facilities
• Retail stores
• Government buildings
• Hotels and hospitality properties
• Industrial facilities
• Public buildings
• General indoor visual notification applications

Reliable Visual Notification Solution

The System Sensor S2415 Wall Strobe combines dependable 15-candela visual signaling, universal mounting, and synchronization capability in a compact notification appliance. Overall, it enhances life safety systems by providing bright, code-compliant visual notification for commercial fire alarm installations while simplifying installation and long-term maintenance.

S2415 Datasheet
