Description

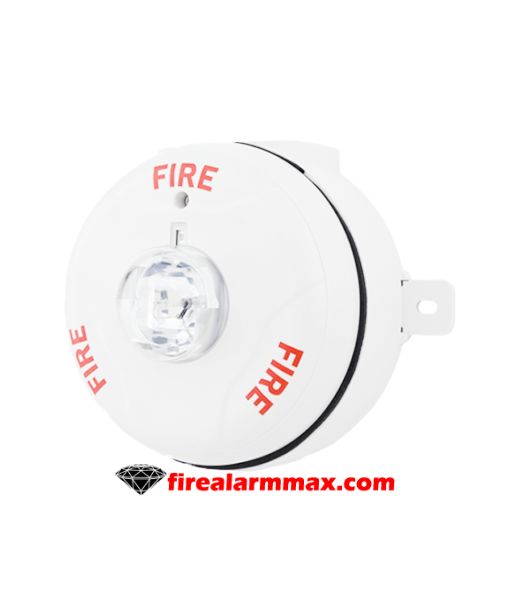

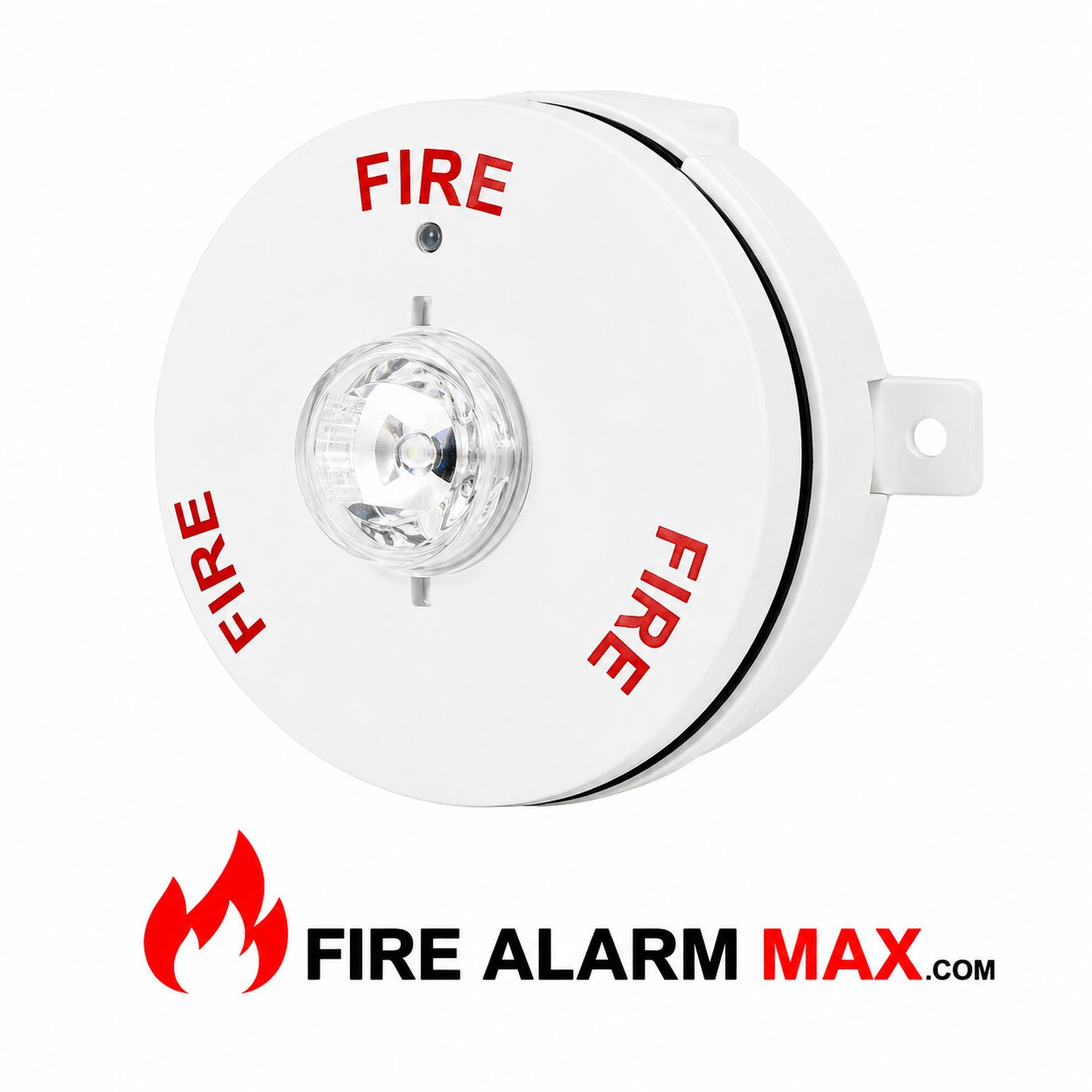

SpectrAlert Advance offers the broadest line of outdoor horns, strobes, and horn strobes in the industry. With white plastic housings, wall or ceiling mounting options, and plain or FIRE-printed devices. System Sensor SCWK can meet virtually any application requirement. Including indoor, outdoor, wet, and dry applications in temperatures from −40°F to 151°F.

Like the entire SpectrAlert Advance line, outdoor strobes and horn strobes for ceiling applications. Include a variety of features that increase application flexibility and simplify installation. First, field selectable settings, including candela, automatic selection of 12- or 24-volt operation, and horn tones. Three-volume options enable installers to easily adapt devices to meet requirements.

Next, System Sensor SCWK uses a universal mounting plate for wall and ceiling applications. This mounting plate includes an onboard shorting spring that ensures wiring continuity. Installers can verify proper wiring without mounting the devices and exposing them to potential construction damage. SpectrAlert Advance devices utilize a plug-in design. With a single captured screw to speed installation and virtually eliminate costly ground faults.

Features / Specifications

• Weatherproof NEMA 4X, IP56 rated
• Field-selectable candela settings: 15, 15/75, 30, 75, 95, 110, 115, 135, 150, 177, and 185
• Automatic selection of 12- or 24-volt operation at 15 and 15/75 candela
• Rotary switch for horn tone and three volume selections
• Universal mounting plate with an onboard shorting spring that tests wiring continuity.
• Plug-in design with minimal intrusion into the back box
• Tamper-resistant construction

Download the Specification sheet in *.pdf format
