Description

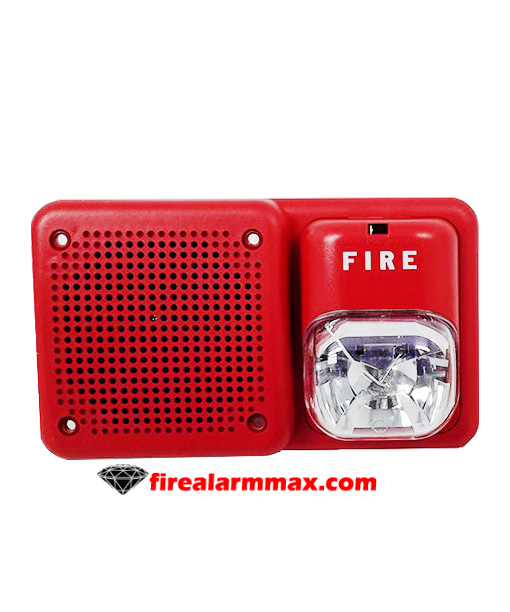

The System Sensor SP2R1224MC Output Speaker/Strobes offer average current draws that are not only lower than conventional fixed-candela SpectrAlert products but also lower than similar selectable candela products. In addition, the broad frequency response range and low harmonic distortion provided by SpectrAlert speaker technology provides an accurate and intelligible broadcast of evacuation messages.

SpectrAlert Selectable Output Speaker/Strobes offer a variety of installation-friendly features, such as the ability to mount to a 4˝ × 4˝ × 21⁄8˝ back box without the need for an extension ring. Also, with the field-reversible strobe, the speaker/strobe may be either left- or right-mounted to avoid potential obstructions.

System Sensor SP2R1224MC Output Speaker/Strobes offer the broadest range of candela options. In addition, the 15 cd and 15/75 cd options can operate on either 12V or 24V, with no setting required; the device recognizes the applied voltage and self-adjusts to the correct setting automatically. The speaker voltage, either 25.0 or 70.7, and power tap settings, ¼, ½, 1, or 2 watt, are field-selectable.

SpectrAlert Selectable Output Speaker/Strobes incorporate the same stylish, low profile design as the conventional SpectrAlert products, for a consistent and aesthetically pleasing appearance across the entire product line.

Features / Specifications

• Fidelity sound quality
• Operates on either 12V or 24V
• Easy candela selection
• 25.0 and 70.7 volt speaker with four field-selectable power taps
• Field-reversible strobe for left- or right-mounting
• Synchronizable with MDL Sync•Circuit™ Module
• Optional surface-mount back box skirt available
