Description

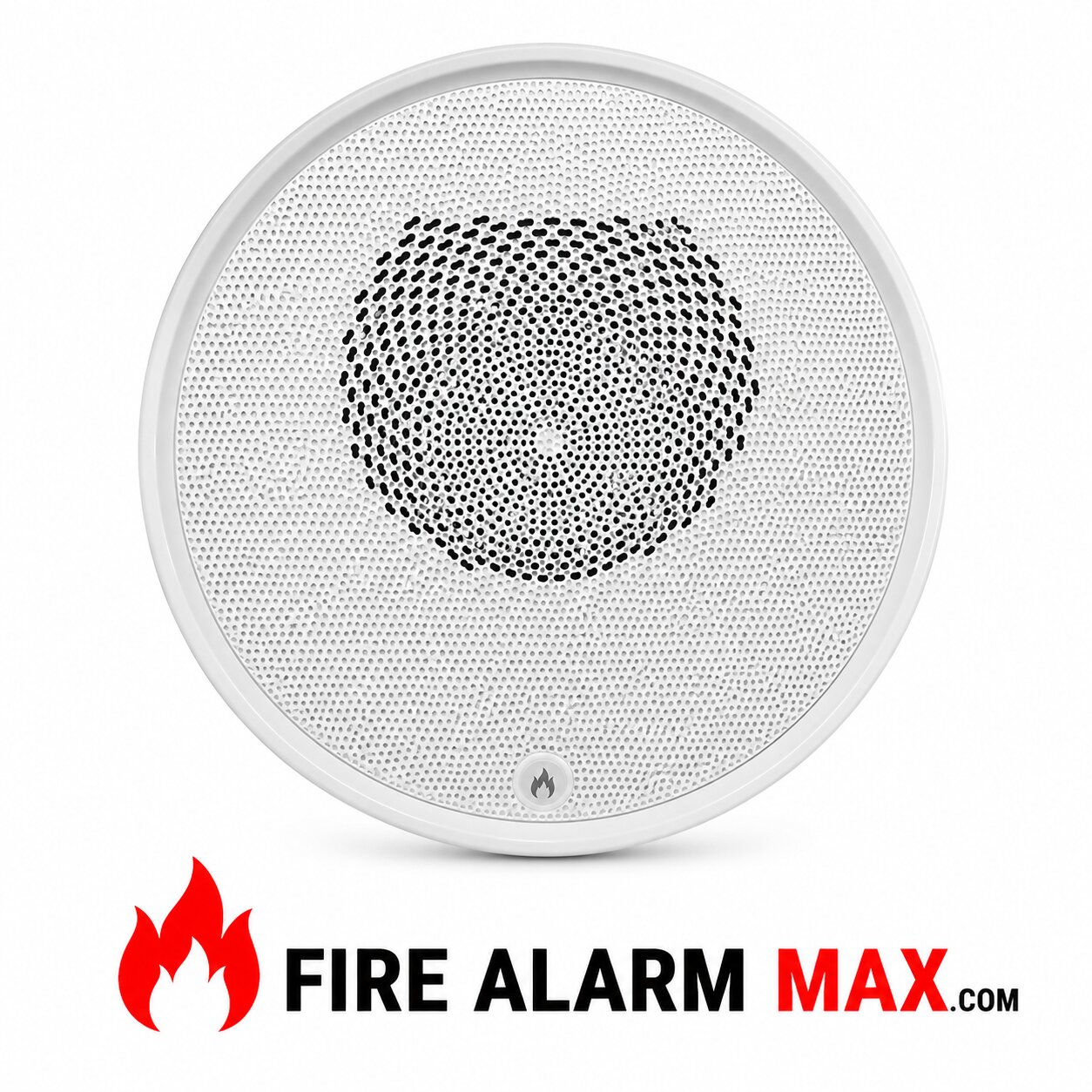

The System Sensor SPCWL-BP10 is a bulk package containing 10 white ceiling-mount speakers designed for compatible commercial fire alarm and emergency voice evacuation systems. Each speaker delivers clear voice communication and emergency tone notification while supporting efficient installation using the System Sensor L-Series plug-in mounting system.

The low-profile ceiling design, field-selectable power settings, and universal mounting options make the SPCWL-BP10 suitable for new installations, system upgrades, and replacement projects. This product is intended exclusively for commercial fire alarm and emergency voice evacuation installations.

Product Functions

• Voice evacuation notification
• Emergency tone signaling
• Ceiling-mounted installation
• Field-selectable power settings
• Plug-in speaker installation
• Commercial emergency communication
• Supports routine inspection and maintenance

Electrical & System Information

Each SPCWL speaker operates on 25 Vrms or 70.7 Vrms speaker circuits. A rotary selector allows installers to choose the operating voltage and power tap during installation without additional components.

The plug-in mounting plate allows field wiring before installing the speaker, helping simplify service and future replacement.

Features

• Bulk package of 10 speakers
• Ceiling-mount design
• White housing
• 25 Vrms or 70.7 Vrms operation
• Selectable ¼, ½, 1, and 2 watt power taps
• High-fidelity voice reproduction
• Plug-in mounting system
• Universal mounting plate
• Low-profile appearance

Mounting & Design

The SPCWL-BP10 mounts to compatible 4-inch square electrical boxes using the supplied universal mounting plate. Optional trim rings and surface-mount back boxes are available for a variety of installation requirements.

The plug-in design allows installation, testing, servicing, and replacement without disturbing field wiring.

Protection & Applications

Suitable for:

• Office Buildings
• Schools
• Hospitals
• Hotels
• Retail Facilities
• Warehouses
• Government Buildings
• Industrial Facilities
• Emergency Voice Evacuation Systems

Compatibility

Compatible with:

• System Sensor L-Series Notification Systems
• Compatible Emergency Voice Evacuation Systems
• 25 Vrms Speaker Circuits
• 70.7 Vrms Speaker Circuits
• SBBCWL Surface Mount Back Box
• TRC-2W Ceiling Trim Ring
• Compatible Fire Alarm Control Panels with Voice Evacuation

Always verify compatibility with the installed fire alarm control panel, amplifier, and speaker circuit before installation.

Technical Specifications

Manufacturer: System Sensor

Parent Company: Honeywell

Model: SPCWL-BP10

Product Type: Ceiling Speaker (Pack of 10)

Series: L-Series

Mounting: Ceiling

Housing Color: White

Speaker Voltage: 25 Vrms or 70.7 Vrms

Power Settings: ¼, ½, 1, and 2 Watts

Frequency Response: 400–4000 Hz

Operating Temperature: 32°F to 120°F (0°C to 49°C)

Operating Humidity: 10%–93% RH Non-Condensing

Wire Size: 12–18 AWG

Application: Indoor Commercial Fire Alarm and Emergency Voice Evacuation Systems

Listings: UL 1480, ULC Listed (Canadian models), application dependent.

Applications

The System Sensor SPCWL-BP10 is designed for commercial fire alarm and emergency voice evacuation systems requiring clear voice communication and emergency signaling. The 10-pack configuration is well suited for offices, schools, hospitals, hotels, warehouses, retail facilities, government buildings, industrial sites, and other commercial occupancies using compatible voice evacuation equipment.
