Description

All System Sensor weatherproof wall-mount horns and horn/strobes can be surface mounted or flush mounted when used with the System Sensor WBB.

The weatherproof or outdoor notification appliance must be used with the System Sensor WBB back box when installed in applications requiring the appliance to be weatherproof or outdoor-listed. In such applications, using a back box other than the System Sensor WBB will void the UL designation.

This accessory is UL listed for use with:

• H12/24K, S1224MCK, P1224MCK, and P12015K series SpectrAlert® wall horn, strobe as well as horn/strobe models
• SSM24 and SSV120 series alarm bells

Mounting Instructions:

• Mount back box in desired location
• Install 1⁄2″ NPT plug into unused conduit opening
• For SpectrAlert models, mount plate to back box using 4 #8-32 x 1⁄2″ screws supplied with product.
• Complete field wiring.
• Remove paper liner on plate gasket
• Insert locking rib into slot on plate.
• Press into plate; the SpectrAlert model will make a “click” when it has locked into place.

Features / Specifications

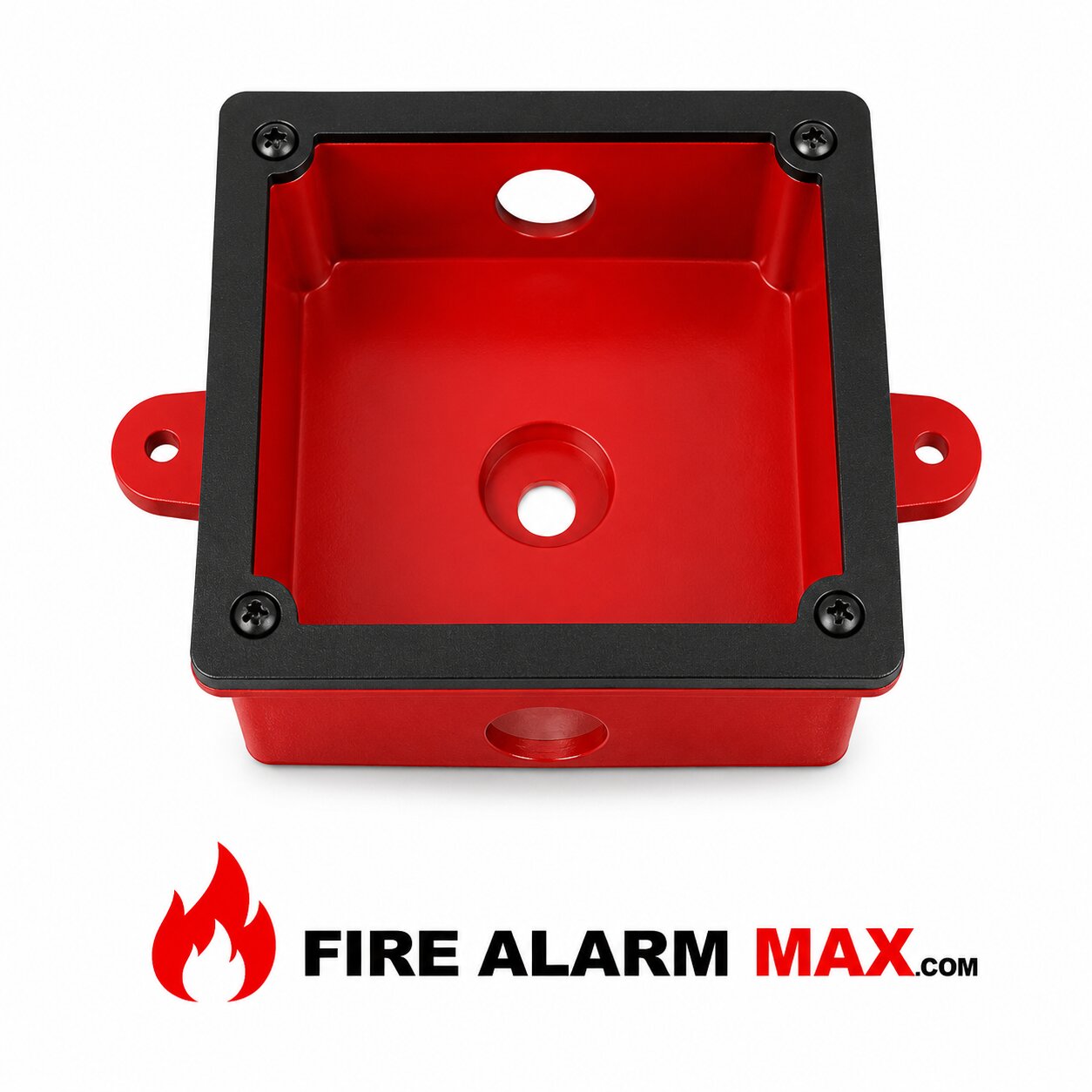

• Box: 4.33″L × 1.55″W × 4.33″H
• Foam gasket: 0.125″ thick, adheres to box top
• Conduit opening: (2) 1⁄2″ NPT, fully threaded with (2) 1⁄2″ NPT plug, (1) 7⁄8″ knockout plug
• Rear mounting tabs with 0.25″ diameter eyelets
• Top mounting holes, #8-32 × 0.50″ DP
