Description

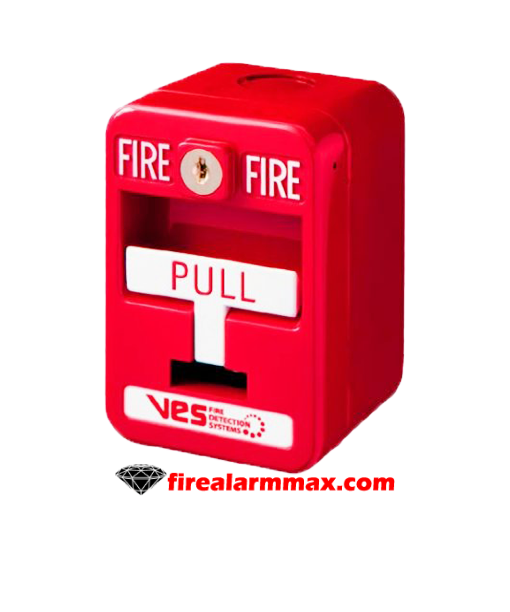

The VES VF3001-10 addressable pull station is operate by pulling the handle marked “PULL” on the front of the station as far down as it will go. At that point, the VES VF3001-10 station will lock in place and is easily visible from up to 50 feet. Also, the activation handle is reset by opening the station with the key, placing the handle in the normal upright position, and relocking the station.

Up to 127 devices can be place on the Elite SLC loop. Furthermore, the module supervises the wiring to the contact with an End Of Line (EOL) resistor. Besides, if a fault condition occurs in the wiring, the module sends a trouble status signal to the fire alarm control panel. When a change of status is sense by the fast response contact module, it sends an interrupt to the control panel indicating that an alarm has occurred. After addressing, Manual Pull Stations are fully configurable through Loop Explorer programming software.

Features / Specifications

• Single action
• Optional Auxiliary Alarm Contacts
• Wirehead Connections
• Gold Plated Alarm Contacts
• Surface or Weatherproof Backbox
• Combined with the VF6024-00 to provide an addressable interface to the Elite SLC loo

Download the Specification sheet in *.pdf format
