Description

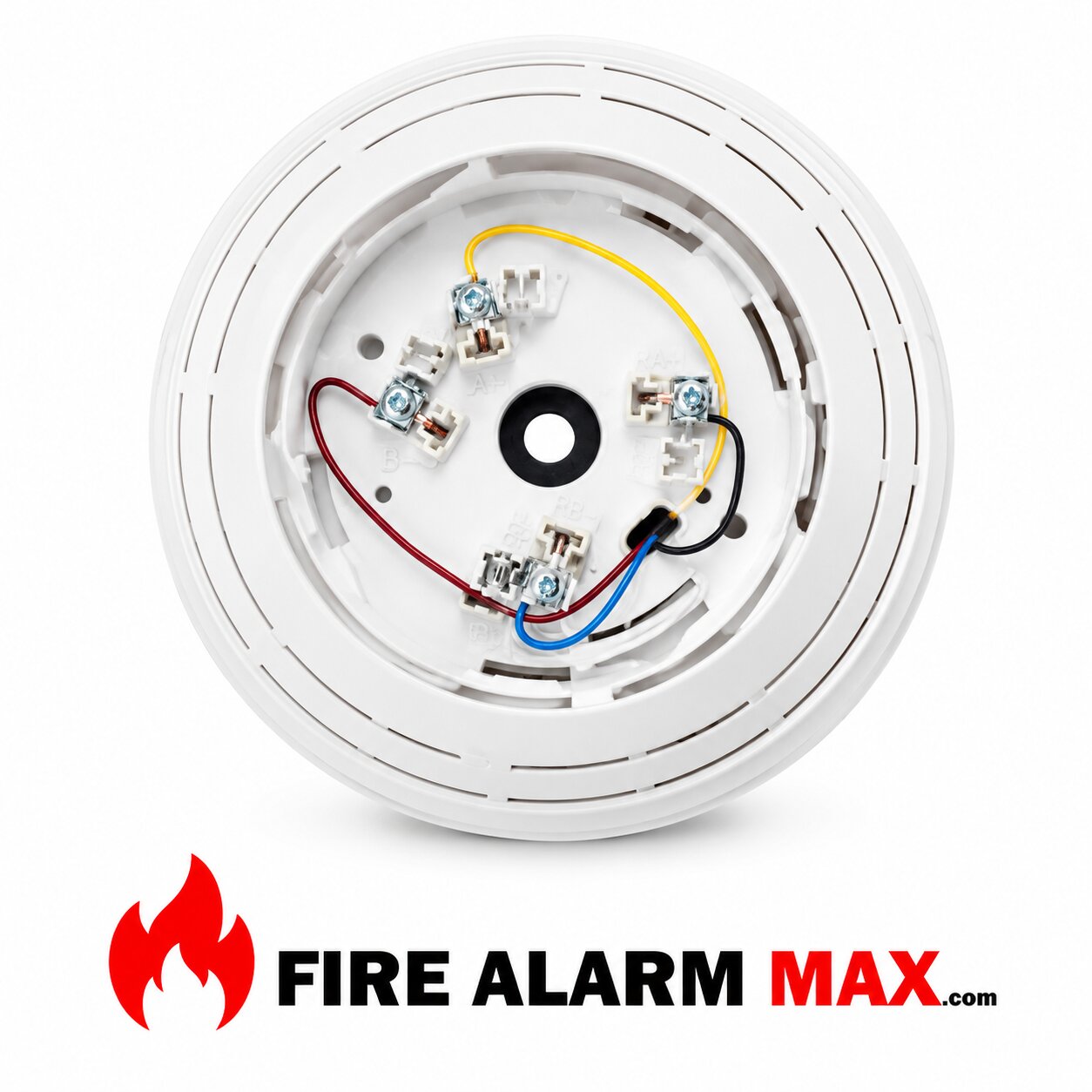

Vigilant GSA-SBT

The Fire/CO sounder base, which requires a GSA-T3T4 Temporal Pattern Generator. Adds an audible output function to the V-PCOS intelligent combination fire/CO detector. The sounder base i s field-configurable for output volume (low or high dBA). By default, the sounder base i s set for high dBA.

The sounder base on the same circuit may b e activated thr ough programming. Or as a group or zone with the use of a GSA-CRR polarity reversal module. The fire/CO sounder base can operate according to the state of its detector. Or it can b e configured through system programming. To operate in conjunction with all sounder bases on the same circuit. Or it can b e controlled by program rules.

The base generates a loud piercing tone that has excellent wall penetration qualities. It uses the same tone generator found in the award-winning Genesis line of wall and ceiling horns. The sounder base i s for use with V-PCOS detectors in applications. Wh ere localized or group alarm signaling i s required. The base uses the same address and a programming label as the detector it supports.

Features / Specifications

Compatible with CO and smoke detectors

High or low dB output

Single or group operation

UL268, UL464, and UL2075 listed

Attractive installation
