Description

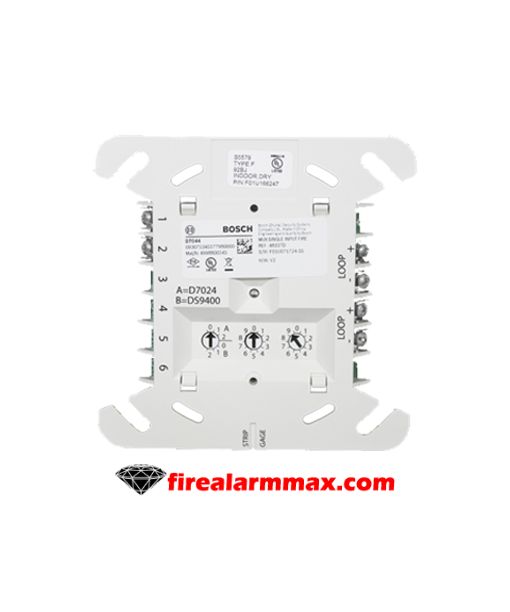

The module connects a normally‑open (NO) contact to the multiplex bus Bosch D7024 Addressable FACPs. Also, use the Bosch D7044 supervised input in a Class B configuration. Besides, all operating power for the input module is drawn from the fire alarm control panel (FACP). Rotary switches allow convenient address settings. An on‑board status LED indicates normal/alarm/trouble conditions and is visible on the module or an attractive, low‑profile faceplate.

In fact, make connections to the terminals on the rear of the module. All terminals can accommodate up to 12 AWG (ISO 4 mm2) wire. However, follow wiring guidelines specified by the National Electrical Code The module connects a normally‑open (NO) contact to the multiplex bus of an FPD‑7024, D7024, or DS9400 FACP. The module draws supervised input power from the FACP for use in a Class B configuration. Furthermore, rotary switches allow convenient address settings. The Bosch D7044 Multiplex Single-input is compatible with the FPD-7024 and D7024* Fire alarm control panels. The modules connect to the FACP through an expansion module.

Features / Specifications

• Use with FPD‑7024, D7024, or DS9400M Addressable FACPs
• Fits into a standard double‑gang or four‑inch square back box
• Easy addressing using rotary switches
• Low current draw
• Environment: Indoor, dry
• Relative Humidity: Up to 93% non‑condensing
• Temperature (operating): +32°F to +120°F (0°C to +49°C)
• Dimensions (L x W x H): 12 cm (4.7 in.) x 12 cm (4.7 in.) x 4 cm (1.57 in.)
• Mounting: Standard double-gang box or 4-in. square electrical box
