Description

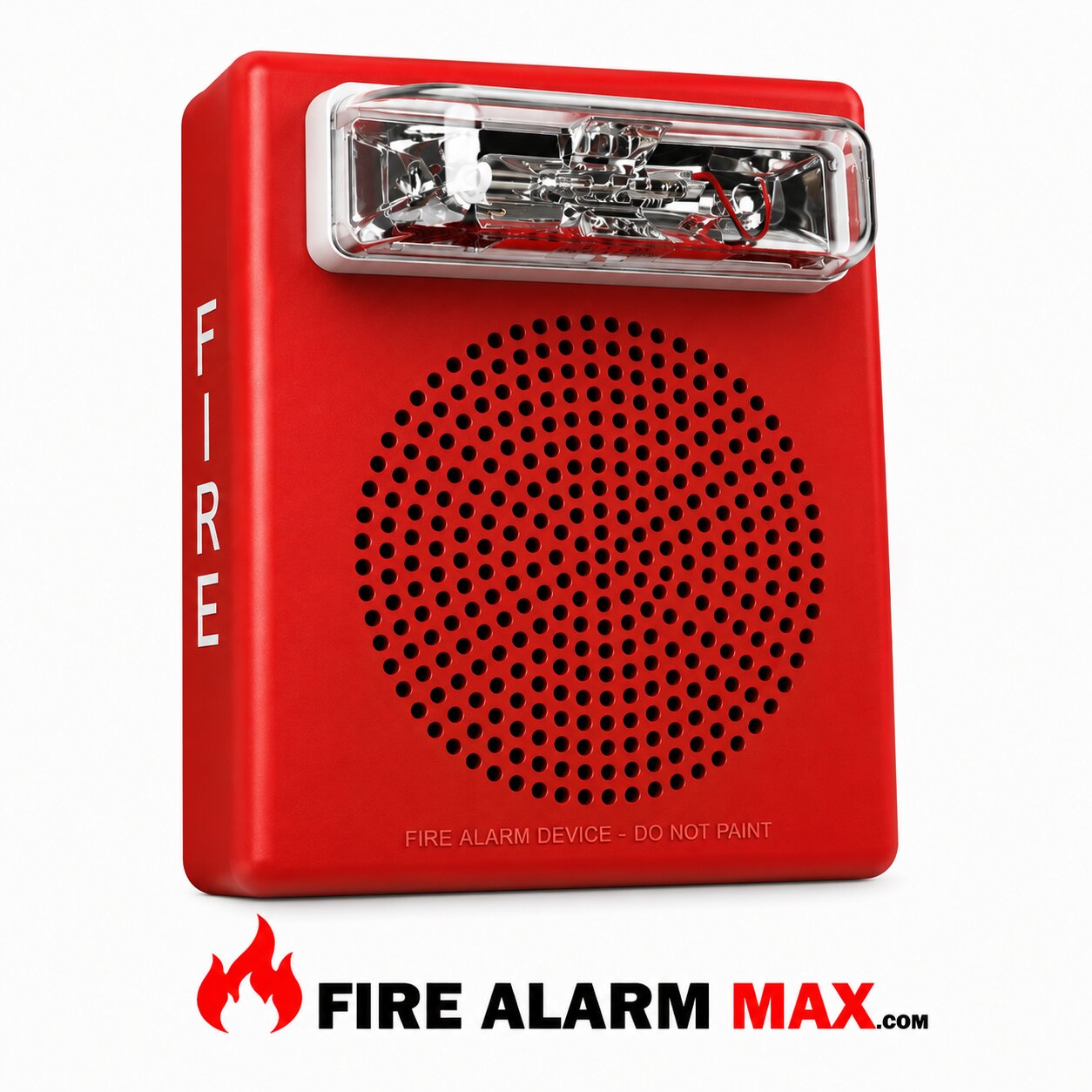

The Cooper Wheelock E50H-24MCW-FR Speaker Strobe is a high-fidelity emergency communication appliance designed for fire alarm, voice evacuation, and mass notification systems. The Wheelock E50H-24MCW-FR combines a high-performance speaker with a multi-candela strobe in a red housing featuring FIRE marking. Therefore, it provides dependable audible and visual notification for commercial, healthcare, educational, and institutional facilities.

Wheelock E50H-24MCW-FR Speaker Strobe Performance

The Wheelock E50H-24MCW-FR is engineered to provide clear and intelligible emergency voice communication while delivering highly visible strobe notification. As a result, occupants receive both voice instructions and visual alerts during emergency situations. In addition, the appliance supports emergency voice/alarm communication systems requiring high speech intelligibility.

High-Fidelity Audio Output

This model is part of the Wheelock E50H high-fidelity series and is designed to deliver superior audio performance across a wide frequency range. Consequently, emergency messages remain clear and understandable throughout the protected area. Moreover, the speaker supports both 25 VRMS and 70 VRMS audio systems with field-selectable wattage taps from 1/8 watt to 2 watts.

Multi-Candela Strobe Technology

The E50H-24MCW-FR features a field-selectable strobe with settings of 15, 30, 75, and 110 candela. Therefore, installers can configure the visual output to meet room size requirements and applicable notification standards. Furthermore, the multi-candela design helps reduce inventory requirements by supporting multiple applications with a single model.

FIRE Marking for Life Safety Applications

The appliance includes FIRE lettering on the red housing for clear identification as a fire alarm notification device. As a result, occupants and emergency responders can quickly recognize the appliance during alarm conditions. Additionally, the FIRE marking supports code-compliant fire alarm installations.

Efficient Installation Design

The Wheelock E50H Series incorporates a snap-on grille cover that eliminates visible mounting screws and simplifies installation. Consequently, installers benefit from a clean finished appearance and reduced installation time. Moreover, the appliance mounts directly to a standard 4-inch square x 2-1/8-inch deep backbox without requiring an extension ring.

Durable Red Housing

The red housing provides highly visible identification of emergency notification equipment. Therefore, the appliance is easily recognized as part of the fire alarm system. Furthermore, the durable construction supports long-term performance in commercial and institutional environments.

Technical Specifications

• Model: E50H-24MCW-FR
• Type: High-Fidelity Speaker Strobe
• Housing Color: Red
• Marking: FIRE
• Mounting: Wall Mount
• Speaker Voltage: 25 VRMS / 70 VRMS
• Wattage Taps: 1/8 to 2 Watts
• Strobe Candela Settings:
  • 15 cd
  • 30 cd
  • 75 cd
  • 110 cd
• Frequency Response: 300 Hz to 8000 Hz
• Indoor Installation
• Compatible with Wheelock Synchronization Protocols

Applications

The Wheelock E50H-24MCW-FR Speaker Strobe is ideal for:

• Voice evacuation systems
• Emergency communication systems
• Commercial office buildings
• Educational facilities
• Healthcare environments
• Government buildings
• Institutional properties

Reliable Voice and Visual Notification Solution

The Cooper Wheelock E50H-24MCW-FR Speaker Strobe combines high-fidelity audio performance, selectable multi-candela strobe output, and a durable FIRE-marked red housing in a single appliance. Overall, it enhances life safety systems by delivering dependable emergency voice communication and visual notification throughout the protected facility.
