Description

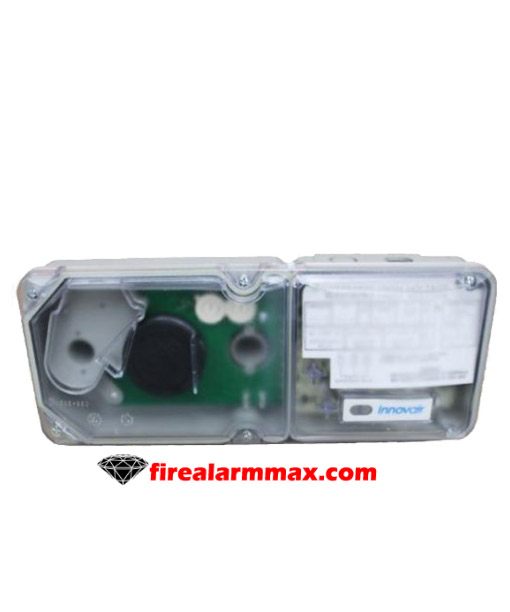

The Edwards DH200PF is an intelligent photoelectric duct smoke detector with an extended airspeed range. This smoke detection combines with an efficient housing design that samples air passing through a duct and allows detection of a developing hazardous condition. When sufficient smoke is sensed, an alarm signal is initiated at the fire control panel monitoring the detector, and appropriate action can be taken to shut off fans, blowers, and change over air handling systems, etc. This can prevent the distribution or it can isolate toxic smoke and fire gases throughout the areas served by the duct system.

Two LEDs on each detector may illuminate, if programmed by the system control panel, to provide a local alarm indication. There is also a remote alarm output for use with auxiliary devices. The Edwards DH200PF has remote test capability with the RTS451/RTS451KEY Remote Test Station.

Features / Specifications

• Operating Voltage Range: 15 to 32 VDC
• Standby Current: 300µA @ 24 VDC
• Operating Temperature: +32° to +131°F (0° to +55°C)
• Storage Temperature: -22° to 158° (-30° to +70°C)
• Humidity Range: 10% to 93% (non-condensing)
• Air Velocity: 500 to 4000 ft/min (2.54 to 20.32 m/sec)
• Dimensions: 14½¾ L x 5½ W x 2¾ D (37 cm L x 14 cm W x 7 cm D)
