Description

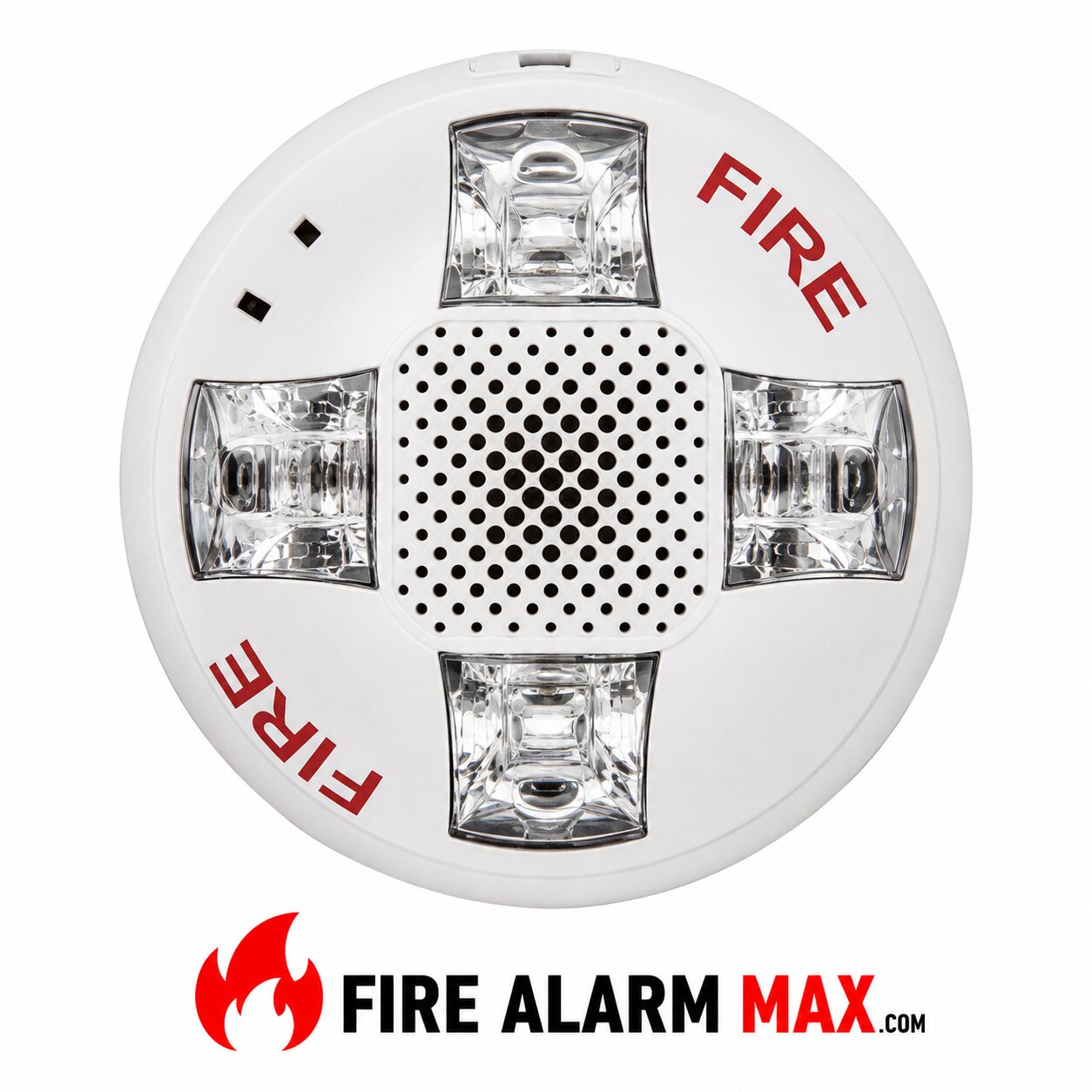

The Edwards GCSVWF Ceiling Speaker Strobe is a small, compact, and attractive audible-visible emergency signaling device. Protruding no more than 1.6″ (41 mm) from the ceiling, Genesis speaker strobes blend with any décor. Life safety appliances feature textured housings in architecturally neutral white or eye-catching life safety red. Thanks to patented breakthrough technology, Edwards GCSVWF Ceiling Speaker Strobe do not require bulky specular reflectors and lenses. Instead, an exclusive cavity design conditions light to produce a highly controlled distribution pattern.

Moreover, full Light strobe technology produces a smooth light distribution pattern without the spikes and voids characteristic of specular reflectors. This ensures the entire coverage area receives consistent illumination from the strobe flash. Genesis clear-lens speaker-strobes feature 15 to 95, or 95 to 177 candela output.

Doubling the distance from the signal to the ear will theoretically cause a 6 dB reduction in the received sound pressure level. Additionally the actual effect depends on the acoustic properties of materials in the space. Doubling the power output of a device (e.g.: a speaker from 1 W to 2 W) will increase the sound pressure level by 3 dBA. A 3 dBA difference represents a barely noticeable change in volume. Combination audible/visual signals must be installed in accordance with guidelines established for strobes.
