Description

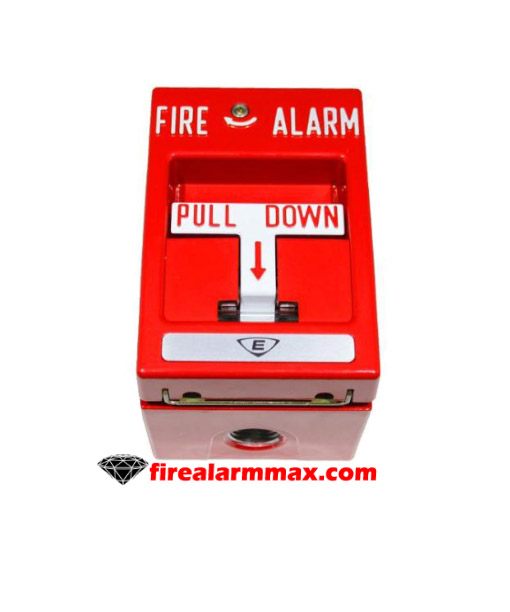

The Edwards MPSR1-SHTW-GE is a manual pull station, single action, SPST, hex tool reset, and terminal connections. Furthermore, the Edwards MPSR1-SHTW-GE – a noncoded fire alarm solidly constructed of a high-quality non-toxic die-cast manual pull station. As well as all of its components – prepainted or have plated surfaces to prevent corrosion. Consequently, weatherproof manual pull stations are rated for outdoor use. It features a NEMA 4X enclosure. The manual pull station has a 10 A snap action switch and gold contacts. Additionally, it may – used with or without a broken glass rod, and rod replacement requires no special tools. Also, each manual station can – reset and locked using the standard key, or hex key provided.

Features / Specifications

• Housing color: Red
• Rated NEMA 4X for outdoor use
• Electrical Switch: 10 amp @ 120V AC
• Reset: Hex Crew
• Wire Size: 14 to 18 AWG
• Key switch: 0.5 A at 30 VDC
• Operating Temperature: -30 °F to 150 °F (-35 °C to 66 °C)
• Humidity: 0 to 85% RH, non-condensing
• Positive activation
• Terminals for wire connections
• Approx. weight: 2.75 lb
• Dimensions: Width 3.06 in (7.77 cm), Height 4.75 in (12.07 cm), Depth 3.0 in (7.62 cm)

The Edwards MPSR1-SHTW-GE is a manual pull station, single action, SPST, hex tool reset, and terminal connections. Furthermore, the Edwards MPSR1-SHTW-GE – a noncoded fire alarm solidly constructed of a high-quality non-toxic die-cast manual pull station. As well as all of its components – prepainted or have plated surfaces to prevent corrosion. Consequently, weatherproof manual pull stations are rated for outdoor use. It features a NEMA 4X enclosure. The manual pull station has a 10 A snap action switch and gold contacts. Additionally, it may – used with or without a broken glass rod, and rod replacement requires no special tools. Also, each manual station can – reset and locked using the standard key, or hex key provided.
