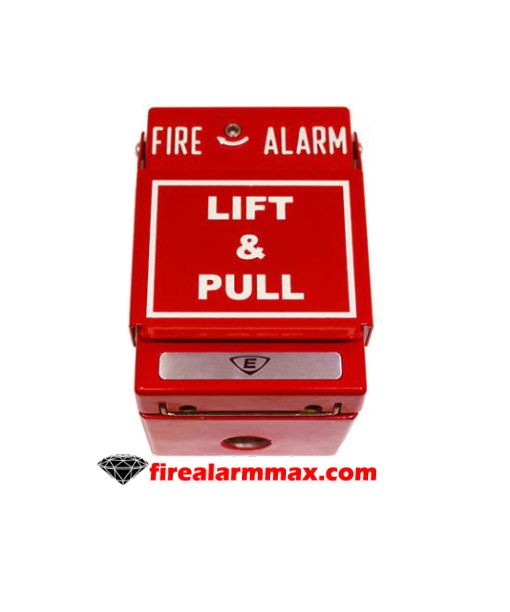

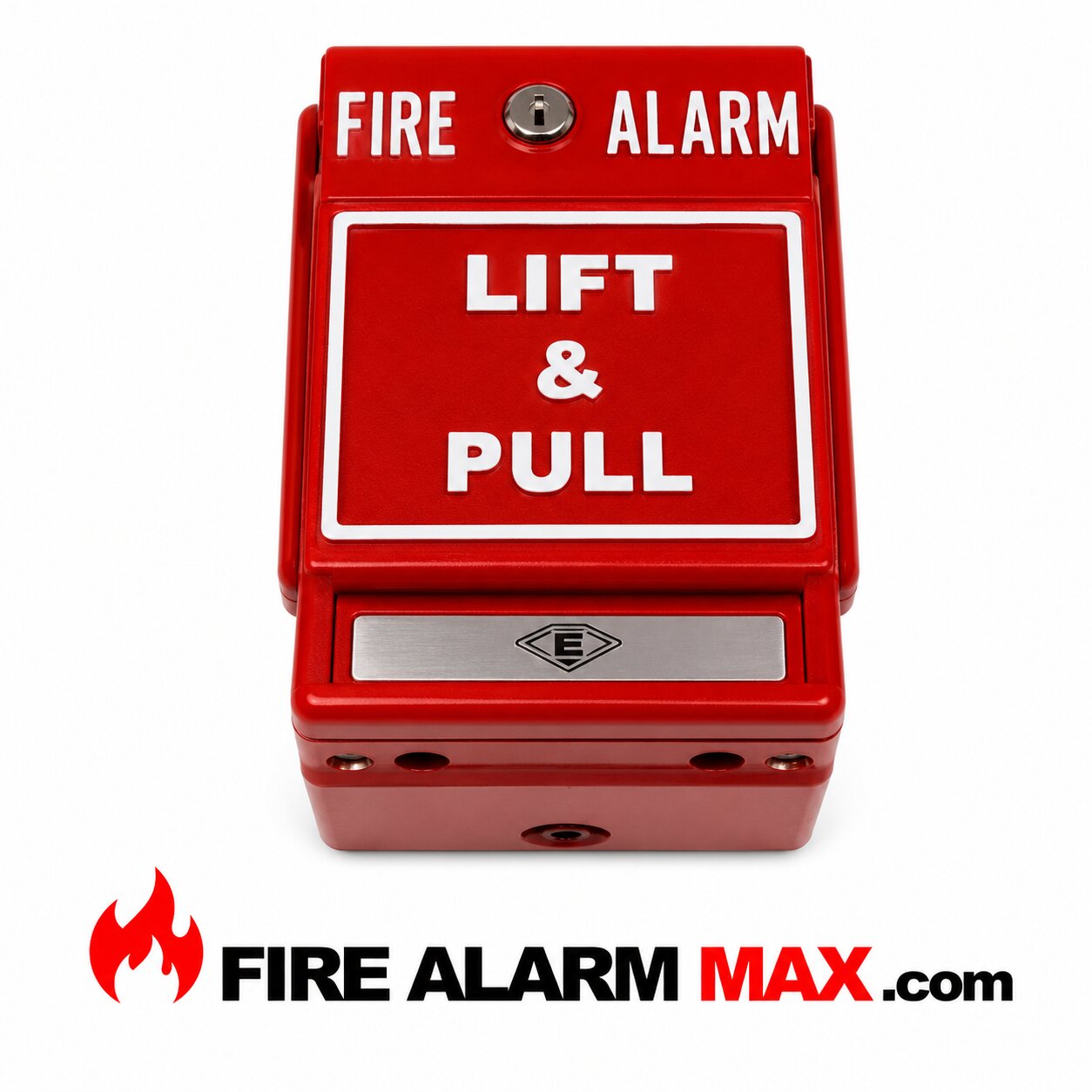

Edwards MPSR2-SHTW-GE
A manual pull station, double-action, SPST, hex tool reset, and terminal connections. The Edwards Weatherproof Pull Station i s a non-coded fire alarm station. They a re Constructed of a high-quality non-toxic die-cast manual pull station. All of its components a re repainted or have plated surfaces. To prevent corrosion.The weatherproof manual pull stations a re rated for outdoor use. It features a NEMA 4X enclosure. The manual pull station has a 10 A snap action switch and gold contacts. It may b e used with or without a break glass rod, And rod replacement requires no special tools. Each manual station can b e reset and locked. Use the standard key or hex key provided.
Features / Specifications
Housing Color: Red
Electrical Switch: 10 amp @ 120V AC
Reset: Hex Screw
Wire Size: 14 to 18 AWG
Solid corrosion-resistant construction
Surface mount weatherproof backbox and gasket, suitable for outdoor use, included
Terminals for wire connections
Rated NEMA 4X for outdoor use
Operating Temperature: -30 °F to 150 °F (-35 °C to 66 °C)
Approx. weight: 2.75 lb
Dimensions: Width 3.06 in (7.77 cm), Height 4.75 in (12.07 cm), Depth 3.0 in (7.62 cm)
| Weight | 3 lbs |
|---|---|
| Dimensions | 6 × 6 × 6 in |
Your Payment information is processed securely. We do not store credit card details, nor have access to your credit card information.
Orders ship same day
Thousands of parts in stock
Reliable products & service
Order anytime, anywhere
Edwards MPSR2-SHTW-GE
A manual pull station, double-action, SPST, hex tool reset, and terminal connections. The Edwards Weatherproof Pull Station i s a non-coded fire alarm station. They a re Constructed of a high-quality non-toxic die-cast manual pull station. All of its components a re repainted or have plated surfaces. To prevent corrosion.The weatherproof manual pull stations a re rated for outdoor use. It features a NEMA 4X enclosure. The manual pull station has a 10 A snap action switch and gold contacts. It may b e used with or without a break glass rod, And rod replacement requires no special tools. Each manual station can b e reset and locked. Use the standard key or hex key provided.
Features / Specifications
Housing Color: Red
Electrical Switch: 10 amp @ 120V AC
Reset: Hex Screw
Wire Size: 14 to 18 AWG
Solid corrosion-resistant construction
Surface mount weatherproof backbox and gasket, suitable for outdoor use, included
Terminals for wire connections
Rated NEMA 4X for outdoor use
Operating Temperature: -30 °F to 150 °F (-35 °C to 66 °C)
Approx. weight: 2.75 lb
Dimensions: Width 3.06 in (7.77 cm), Height 4.75 in (12.07 cm), Depth 3.0 in (7.62 cm)
| Weight | 3 lbs |
|---|---|
| Dimensions | 6 × 6 × 6 in |
