Description

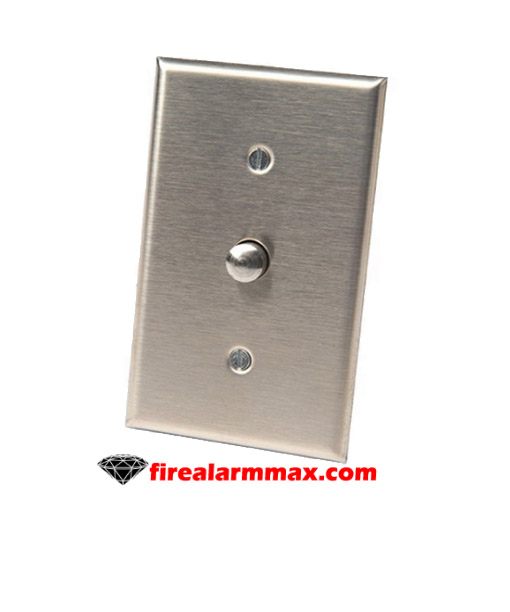

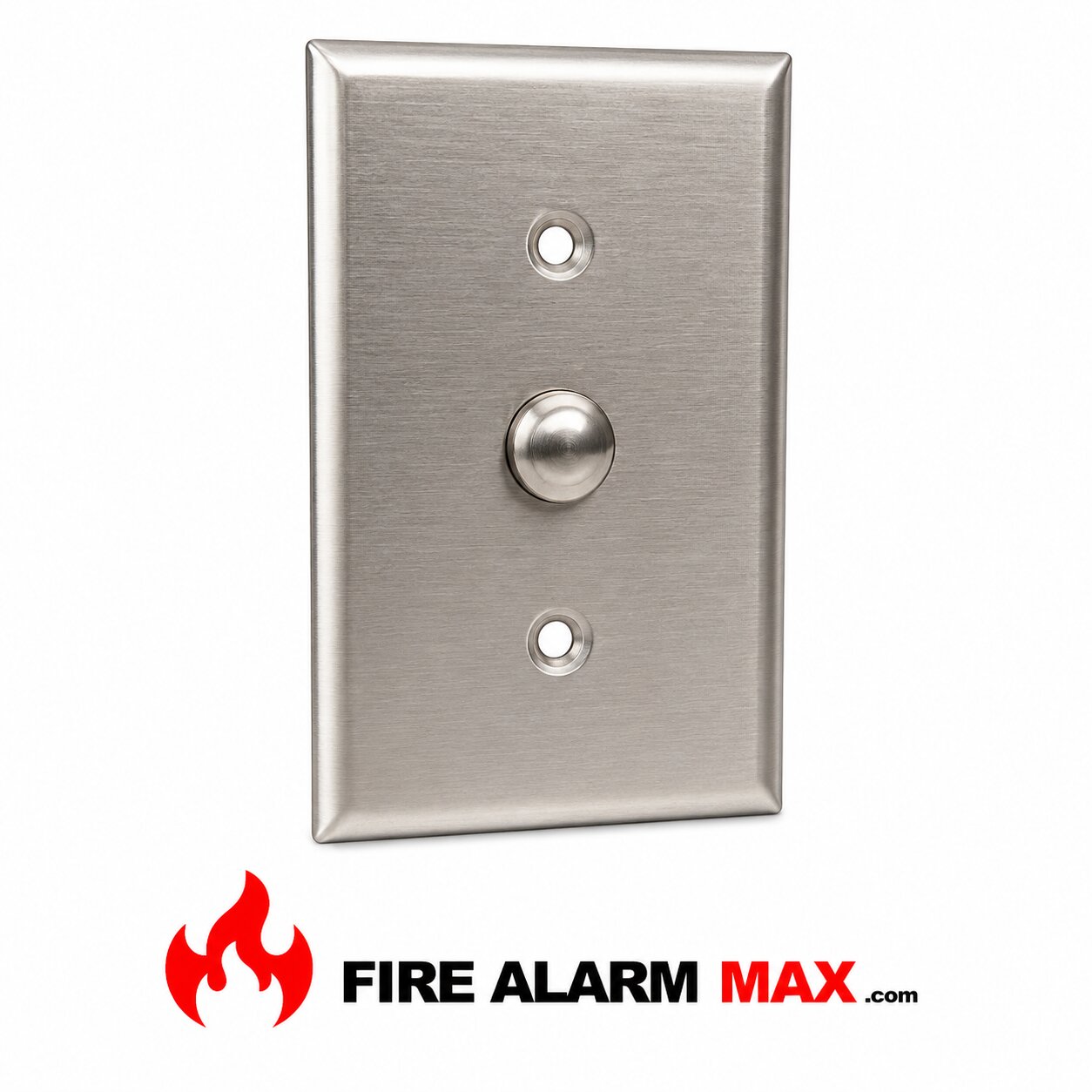

Firstly, the Est Edwards Signaling 852 flush weatherproof push-button features an 850 push button with a diaphragm enclosing the mechanism. Also, it is suitable for use in indoor and outdoor applications. Besides, the 4 11/16″ (119mm) x 2 7/8″ (73mm) wall plate has a rubber gasket for weather-tight integrity. In addition, Est Edwards Signaling 852 flush weatherproof push-button is use for flush mount, exterior, high voltage use.

Features / Specifications

• Flush mount
• Satin chrome finish
• High voltage Pushbutton
• Type Weatherproof
• Maximum Voltage Rating 250 V
• Contact Configuration NO, Momentary as well as normally open momentary contacts
• Application High Voltage, Signaling
• Edwards Signaling 852 Flush Pushbutton has a Rubber Gasket Wall Plate
• Contact Ratings: 12V: 10 amps AC, 10 amps DC
• Suitable for use in indoor as well as outdoor applications.
• Contact Ratings: 48V: 10 amps AC, 7 amps DC
• Hole depth: 2 1/16″ (52mm)
• Contact Ratings: 24V: 10 amps AC, 10 amps DC
• Contact Ratings: 32V: 10 amps AC, 8 amps DC
• Weight: 0.39 lb
• Contact Ratings: 125V: 6 amps AC, 3 amps DC
• Contact Ratings: 250V: 3 amps AC, 1 amp DC
• Dimensions: 2-19/32 Inch W X 4-9/16 Inch H Size
