Description

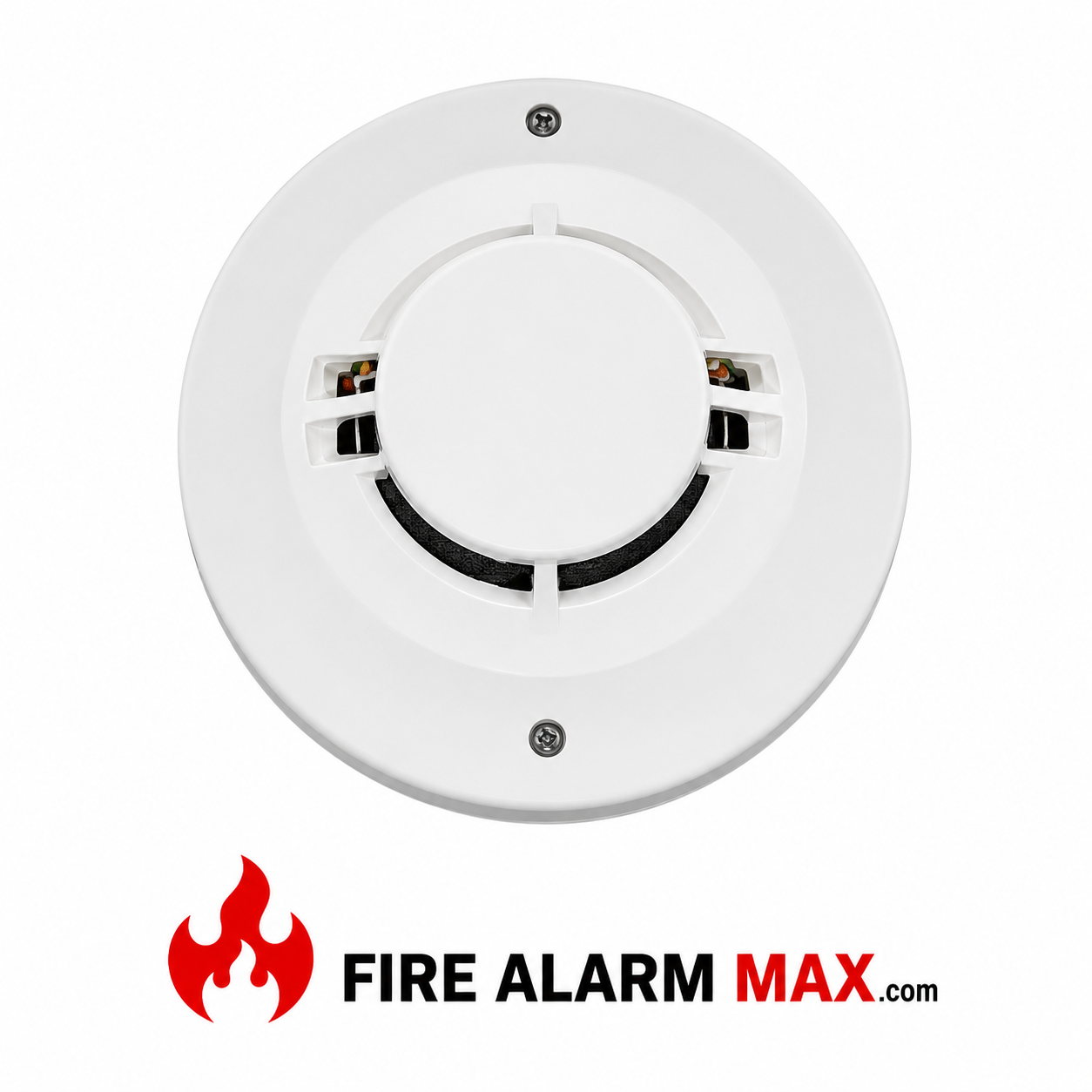

In general, the Intelligent Photoelectric/heat, spot-type smoke detector, Fike 63-1059, has sensing chambers that utilize the light scattering principle to detect smoke. In addition, the detector is equipped with dual thermistors for heat sensing. The sensing chamber employs features that minimize the effect of settled dust on performance.

The detector comes designed with tri-color LEDs to indicate detector status. A remote LED annunciator, P/N 02-3868, is available as an accessory. Also, it can be configure to follow the detector LED operation or be independently control. The heating element of the detector provides an alarm, while the photo element can be programmed as an alarm or supervisory. Besides, the isolator version, Fike 63-1059, provides complete short circuit isolation for NFPA 72, Class X wiring if used with an isolator base.

Furthermore, the detector is compatible with Fike’s CyberCat® and Cheetah® Xi intelligent control panels. Its operating parameters are configure using the panel’s programming software and are store within non-volatile RAM in the detector. This onboard intelligence allows each detector to communicate its status directly to other devices connected to the panel. This peer-to-peer digital protocol results in less information that needs to be send between the detector and the host control panel, resulting in faster, more reliable communication.

Features / Specifications

• Normal Operating Voltage: 15 to 30 VDC
• Standby Current: 481µa max. @ 24 VDC (continuous broadcasts)
• Alarm Current: 2 mA max. @ 24 VDC (LEDs on)
• Humidity Range: 10% to 93% Relative Humidity, non-condensing
• Temperature Range: 32 to 100°F (0 to 38°C)
