Description

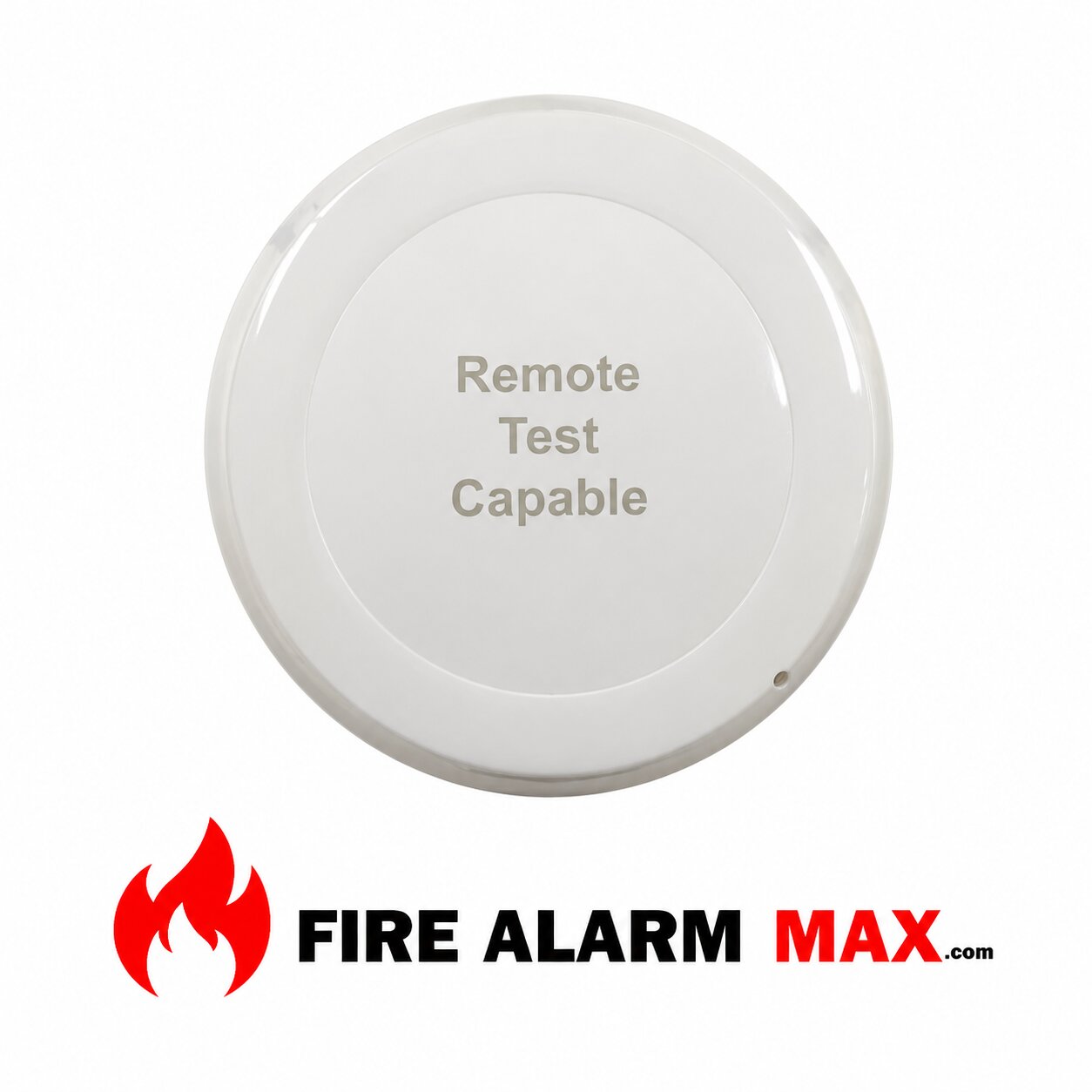

The Fire-Lite SD365R is a commercial addressable smoke detector designed for compatible Fire-Lite addressable fire alarm systems. It features an enhanced smoke sensing chamber engineered to detect smoke from a wide range of combustion sources while providing dependable performance and reduced nuisance alarms. The SD365R model also includes remote test capability for use with compatible DNR(A) and DNRW duct smoke detector housings.

The detector incorporates rotary decimal addressing, dual status LEDs, and continuous communication with the fire alarm control panel for alarm reporting and maintenance supervision. Its low-profile plug-in design simplifies installation and servicing. This product is intended exclusively for commercial fire alarm installations.

Product Functions

• Detects airborne smoke
• Reports alarm conditions to the fire alarm control panel
• Supports remote detector testing
• Continuous detector supervision
• Individual device identification
• Dual LED status indication
• Supports magnetic functional testing
• Automatic maintenance monitoring

Electrical & System Information

The SD365R operates on compatible Fire-Lite LiteSpeed® and CLIP addressable signaling line circuits (SLC). The detector continuously communicates with the fire alarm control panel for alarm reporting, maintenance monitoring, and device identification.

Rotary decimal address switches provide simple field addressing, while the plug-in detector head installs on compatible Fire-Lite detector bases or inside compatible DNR(A)/DNRW duct detector housings for HVAC duct smoke detection applications.

Features

• Commercial addressable smoke detector
• Remote test capability
• Enhanced smoke sensing chamber
• Rotary decimal addressing
• Dual LEDs with 360° visibility
• Plug-in detector head
• Low-profile housing
• Magnetic functional test switch
• Removable insect-resistant screen
• Built-in tamper-resistant feature
• Compatible with duct detector housings

Mounting & Design

The SD365R utilizes a plug-in detector design for easy installation, inspection, cleaning, testing, and replacement without disturbing field wiring. It is specifically designed for installation in compatible DNR(A) and DNRW duct smoke detector housings when remote testing is required, while also supporting compatible Fire-Lite detector bases for standard applications.

Protection & Applications

Suitable for:

• Office Buildings
• Schools
• Hospitals
• Hotels
• Warehouses
• Manufacturing Facilities
• Commercial HVAC Systems
• Industrial Facilities
• Commercial Properties

Compatibility

Compatible with:

• Fire-Lite Addressable Fire Alarm Control Panels
• LiteSpeed® Signaling Line Circuits
• CLIP Signaling Line Circuits
• DNR(A) Duct Smoke Detector Housing
• DNRW Duct Smoke Detector Housing
• Fire-Lite Intelligent Detector Bases
• Relay Bases
• Isolator Bases
• Sounder Bases

Always verify compatibility with the installed fire alarm control panel, detector base or duct housing, firmware version, and project requirements before installation.

Technical Specifications

Manufacturer: Fire-Lite

Parent Company: Honeywell

Model: SD365R

Product Type: Addressable Smoke Detector

Detection Method: Photoelectric Smoke Sensing

Special Feature: Remote Test Capability

Communication Protocol: LiteSpeed® and CLIP

Addressing: Rotary Decimal Switches

Status Indicators: Dual LEDs

Testing: Magnetic Test Switch and Remote Test Capability

Construction: Fire-Resistant Plastic

Housing Color: White

Mounting: Compatible Fire-Lite Detector Base or DNR(A)/DNRW Duct Housing

Tamper Resistance: Built-In

Maintenance Feature: Removable Insect-Resistant Screen

Application: Indoor Commercial Fire Alarm Systems

Listings: UL Listed and FM Approved; verify product labeling and project requirements for the intended installation.

Applications

The Fire-Lite SD365R is designed for commercial fire alarm systems requiring reliable addressable smoke detection with remote testing capability. It is especially well suited for HVAC duct smoke detection when installed in compatible DNR(A) or DNRW duct housings, as well as standard commercial fire alarm applications in offices, schools, hospitals, hotels, warehouses, manufacturing facilities, and other commercial occupancies utilizing compatible Fire-Lite addressable fire alarm systems.
