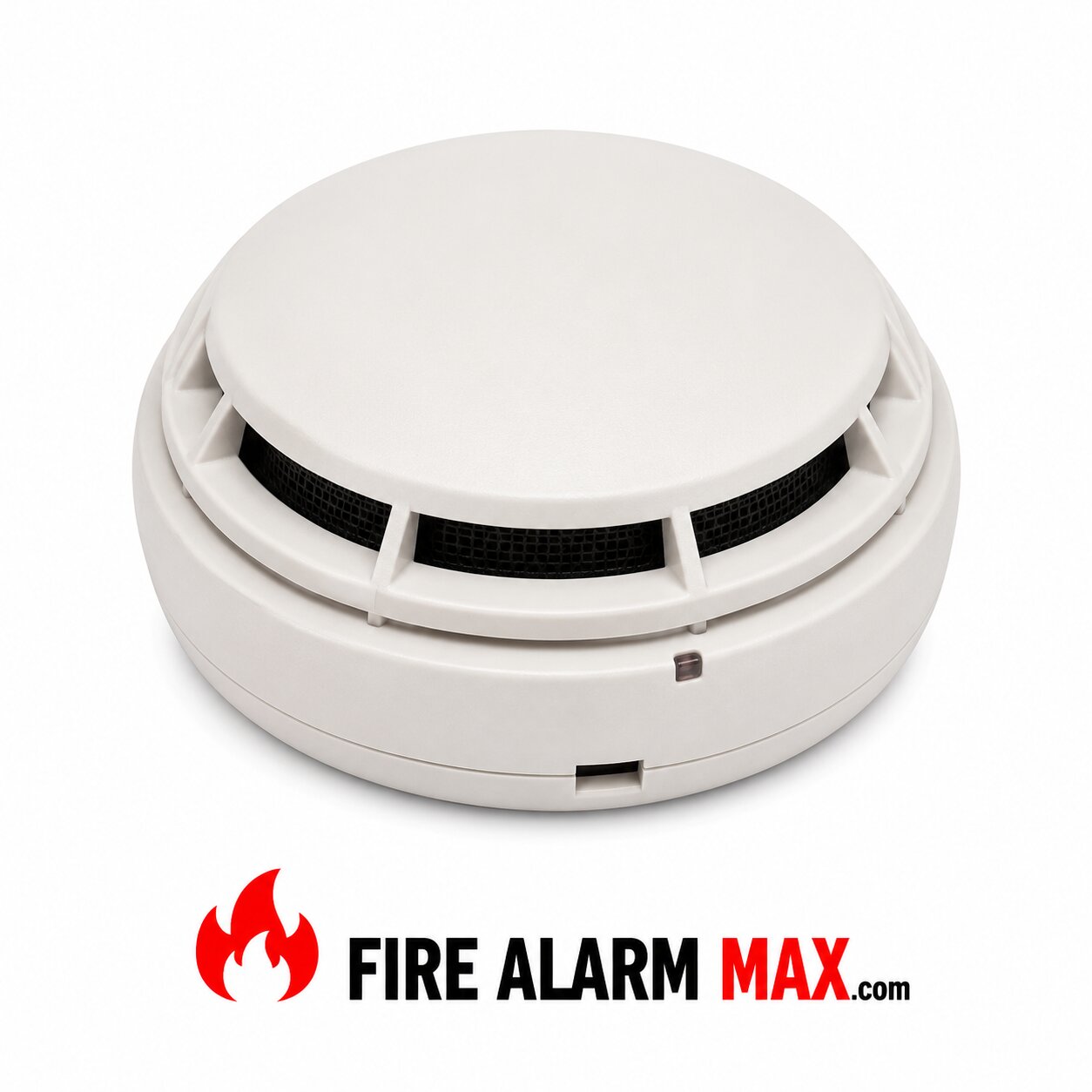

The Simplex 4098-9714 is an addressable commercial smoke detector designed to provide dependable fire detection in commercial fire alarm systems. Utilizing TrueAlarm analog sensing technology, it continuously measures smoke conditions and communicates detector data to the fire alarm control panel for intelligent alarm analysis and system supervision.
Designed for commercial life safety applications, the detector features advanced analog processing, programmable sensitivity, 360 degree smoke entry, and a low profile plug in design that simplifies installation, testing, and maintenance. Its TrueAlarm technology allows the control panel to automatically compensate for environmental changes while maintaining dependable detection performance.
The 4098-9714 communicates over Simplex IDNet or MAPNET II signaling circuits and occupies one address on the communication loop. Detector sensitivity is continuously analyzed by the fire alarm control panel, which compares current readings with historical averages to determine alarm or abnormal conditions.
The detector features a stable pulsed LED light source, silicon photodiode receiver, and 360 degree smoke entry. User selectable sensitivity settings are available for special applications, while the control panel automatically adjusts operating sensitivity during normal operation to maintain reliable performance.
The 4098-9714 features TrueAlarm analog sensing technology, addressable communication, programmable detector sensitivity, automatic sensitivity compensation, 360 degree smoke entry, pulsed LED sensing, silicon photodiode receiver, remote LED support, low profile plug in installation, continuous self supervision, and dependable performance for commercial fire alarm systems.
Suitable for:
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
Your Payment information is processed securely. We do not store credit card details, nor have access to your credit card information.
Orders ship same day
Thousands of parts in stock
Reliable products & service
Order anytime, anywhere
The Simplex 4098-9714 is an addressable commercial smoke detector designed to provide dependable fire detection in commercial fire alarm systems. Utilizing TrueAlarm analog sensing technology, it continuously measures smoke conditions and communicates detector data to the fire alarm control panel for intelligent alarm analysis and system supervision.
Designed for commercial life safety applications, the detector features advanced analog processing, programmable sensitivity, 360 degree smoke entry, and a low profile plug in design that simplifies installation, testing, and maintenance. Its TrueAlarm technology allows the control panel to automatically compensate for environmental changes while maintaining dependable detection performance.
The 4098-9714 communicates over Simplex IDNet or MAPNET II signaling circuits and occupies one address on the communication loop. Detector sensitivity is continuously analyzed by the fire alarm control panel, which compares current readings with historical averages to determine alarm or abnormal conditions.
The detector features a stable pulsed LED light source, silicon photodiode receiver, and 360 degree smoke entry. User selectable sensitivity settings are available for special applications, while the control panel automatically adjusts operating sensitivity during normal operation to maintain reliable performance.
The 4098-9714 features TrueAlarm analog sensing technology, addressable communication, programmable detector sensitivity, automatic sensitivity compensation, 360 degree smoke entry, pulsed LED sensing, silicon photodiode receiver, remote LED support, low profile plug in installation, continuous self supervision, and dependable performance for commercial fire alarm systems.
Suitable for:
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
