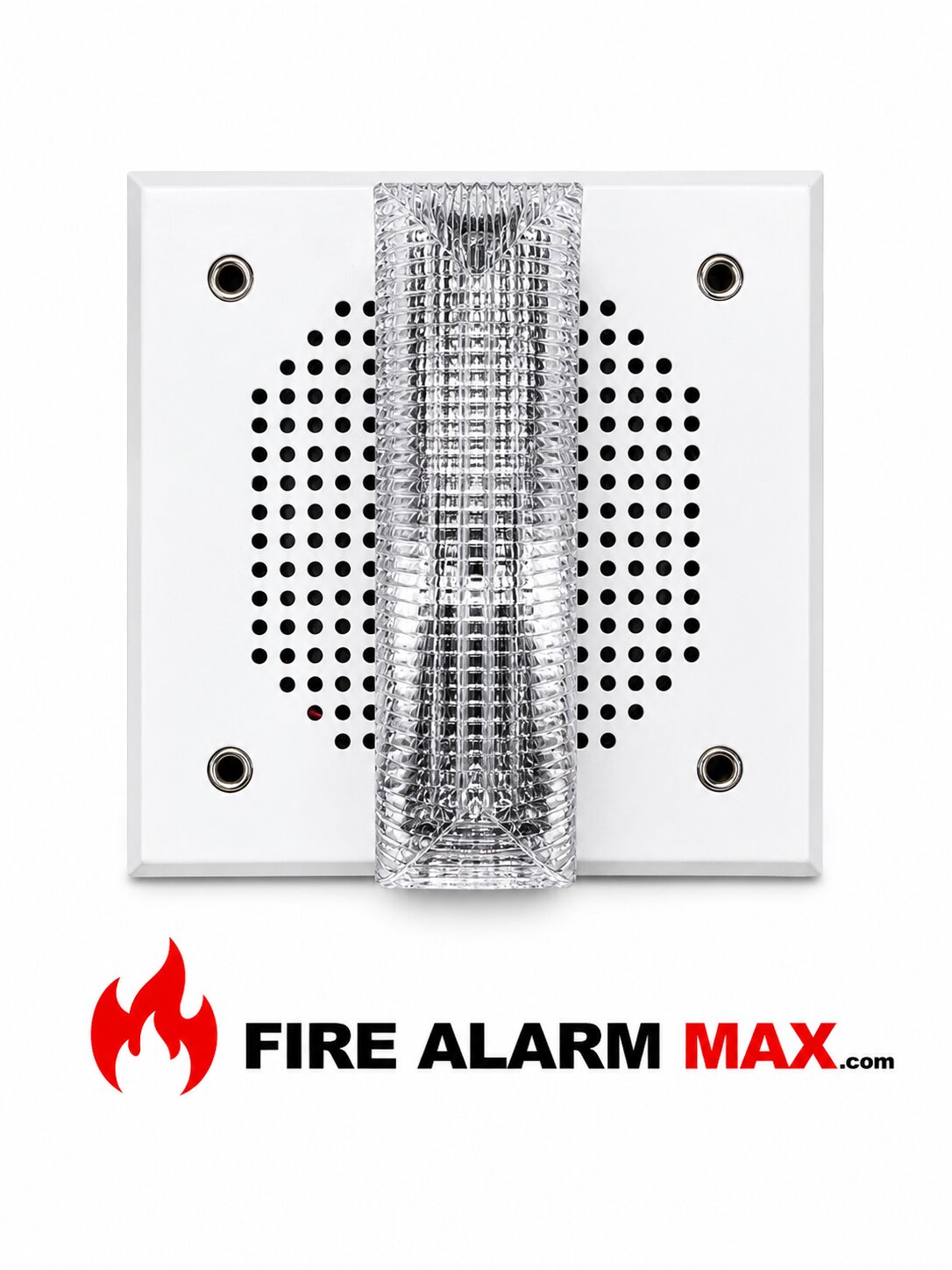

The Gentex SPKE4-110WW is a wall-mount speaker / speaker-strobe combination unit. Its design incorporates both audible signaling (voice/alarm sound) and visual signaling (strobe light) in one enclosure, enabling it to meet both sound and light notification requirements in fire alarm or mass notification systems.
From available data, here are the known features and typical specifications:
| Feature | Detail |
|---|---|
| Device Type | Speaker + Strobe (combination) |
| Candela | 110 cd strobe output |
| Sound Level | 75 dBA at 10 ft (approx.) |
| Current Consumption | 220 mA @ 24 VDC |
| Voltage | 24 VDC nominal operation |
| Color / Finish | White (WW suffix) |
| Status / Lifecycle | Discontinued by the manufacturer |
| Standards / Listings | The SPKE series is generally UL 1480 listed for the speaker portion, and the strobe portion is UL 1971 / UL 1638 (typical for combination speaker strobes) |
| Design / Mounting | Wall-mount design; intended to fit a standard 4″ square backbox with optional extension rings |
| Speaker Taps and Configuration | The SPKE series allows selectable power taps (1/8 W to 4 W) and supports 25 or 70.7 VRMS speaker lines |
| Flash Rate | The strobe maintains a constant flash rate of 1 Hz (one flash per second) regardless of input voltage (within operating range) |
| Wiring | Uses screw terminals with separate in/out wiring for both speaker and strobe; suitable for wiring with up to 12 AWG conductors |
| Weight | 5 lbs |
|---|---|
| Dimensions | 8 × 8 × 8 in |
