Description

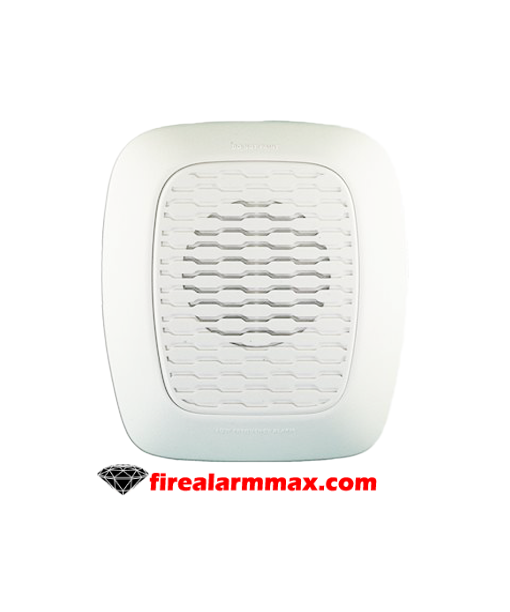

In general, the Hochiki HHLFW is a high-quality, low-profile as well as low-frequency audible appliance that offers a dependable audible alarm with a low current draw. Also, the Hochiki HHLFW is ideal for any occupancy that requires notification appliances. Besides, the HHLF horn offers a 520 Hz square wave, temporal 3 tones. A jumper selection is available for normal or loud decibel tones. A temporal 4 pattern is available when used with the Hochiki HTSM Synchronization Control Module.

The Hochiki HHLFW comes shipped with a standard 4″ metal mounting plate. The product also features a locking mechanism that secures the product to the bracket without any screws showing.  The HHLF horn is listed to ANSI/UL 464 and CAN/ULC S3597, is listed for use with fire protective systems, and is warranted for three years from the date of purchase.

Features / Specifications

• Nominal voltage 24 VDC
• Synchronize horn with Hochiki HTSM Synchronization Control Module
• Prewire entire system, install mounting bracket, then install signals
• Input terminals accept 12 to 18 AWG
• Produces a 520Hz square wave, temporal 3 tone
• Jumper selection for normal or loud dBA
• Temporal 4 pattern available when used with Hochiki HTSM Synchronization Module
• Tamperproof re-entrant style grill and locking screw
