Description

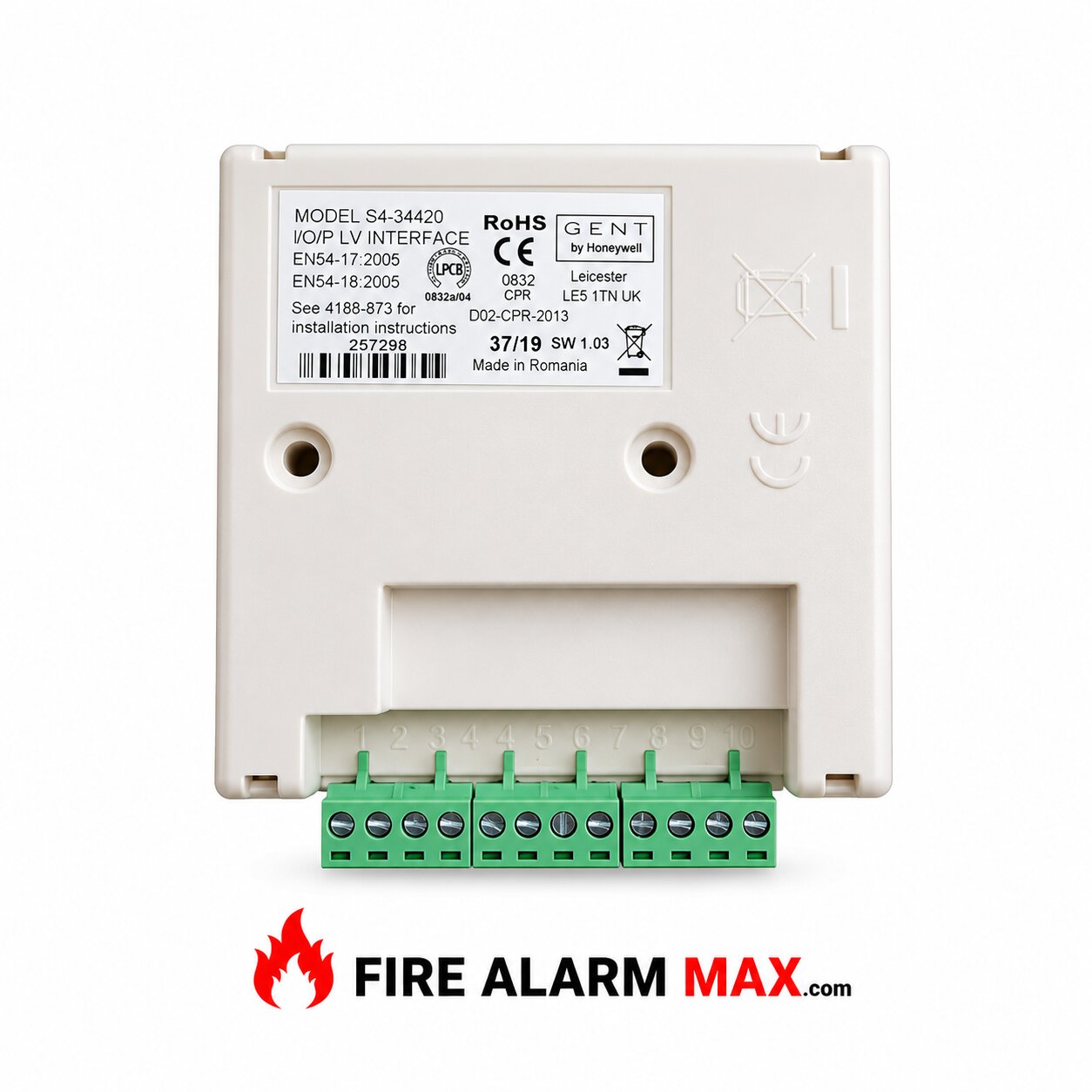

The Honeywell Gent S4-34420 Loop Powered Low Voltage Output Module provides efficient control and communication between fire alarm systems and external devices. Furthermore, its low-voltage output capability and compact design make it an essential component for automation and fire safety systems.

Key Features

• Low Voltage Output: The module provides low-voltage control signals to external devices such as sounders, strobes, and control relays.
• Loop Powered: Powered directly from the fire alarm control panel loop, reducing the need for additional wiring or power supplies.
• Addressable Technology: Each module has a unique address, enabling the control panel to precisely identify and monitor its operation.
• Rugged Design: Built with high-quality components to ensure long-lasting performance in diverse environments.
• Versatile Application: Suitable for use in commercial, industrial, and residential systems, offering flexibility across different installations.
• Simple Installation: Compact size and easy wiring make integration straightforward, minimizing setup time.

Technical Specifications

• Voltage Rating: 17 to 32 VDC (loop-powered)
• Current Draw: 1.0 mA (standby) / 5.5 mA (active)
• Output Voltage: 5 to 24 VDC (configurable)
• Operating Temperature Range: 32°F to 120°F (0°C to 49°C)
• Humidity Range: 10% to 95% non-condensing
• Wiring: Supports 14–18 AWG wires
• Weight (lbs): 0.4 lbs
• Dimensions (in): 4.5 x 3.0 x 1.0 inches
• Mounting Options: Compatible with standard electrical enclosures
• Compliance: Meets EN 54-18 and BS 5839 standards for fire detection and alarm systems.

Compliance and Assurance

The S4-34420 Output Module complies with EN 54-18 and BS 5839 standards, ensuring it meets the highest safety requirements. Its addressable functionality enables precise control over connected devices, enhancing system performance and communication. Furthermore, the module’s loop-powered design simplifies wiring and reduces installation costs.

Advantages

• Precise Output Control: Provides configurable low-voltage outputs for triggering external devices in response to system commands.
• Energy-Efficient Design: Loop-powered operation eliminates the need for external power supplies, saving energy and simplifying setup.
• Durable Construction: Engineered to perform reliably in challenging environments, ensuring long-term functionality.
• Flexible Installation: Compact form factor fits easily into standard enclosures, making integration simple across different fire alarm configurations.
• Enhanced System Flexibility: Addressable technology ensures seamless operation and monitoring within fire alarm systems.
