Description

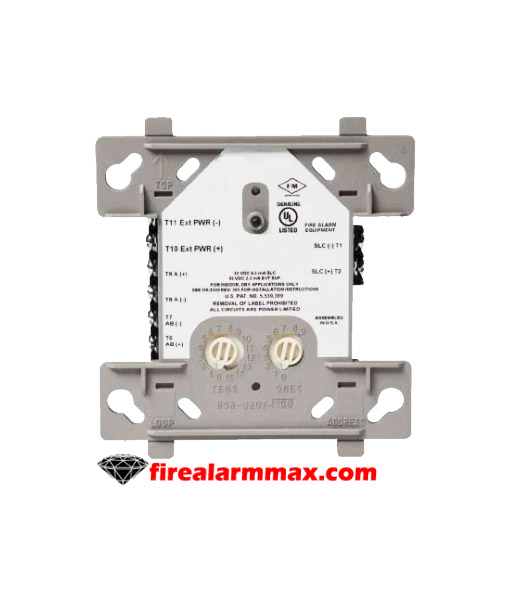

The Notifier FCM-1-RELA Releasing Control Module is specifically designed for fire suppression releasing applications in FlashScan® systems. Power to the release agent solenoid(s) runs through the module for full-time monitoring and supervision.

In fact, the Notifier FCM-1-RELA Releasing Control Module uses a redundant protocol; the module must be armed with a pair of signals to activate and it may be connected to either one 24VDC solenoid or up to two 12VDC solenoids (in series) . It will then enter a 3-second window awaiting a pair of confirmation signals. It also supervises the wiring to the connected load and reports the status to the panel as NORMAL, OPEN, or SHORT CIRCUIT. Besides, the module has two pairs of output termination points available for fault-tolerant wiring and a panel-controlled LED indicator. Notifier system control panel only (list available from Notifier). In addition, please refer to Notifier Device Compatibility Document PN 15378 for the list of compatible solenoids.

Features / Specifications

• Redundant protocol for added protection
• Configurable for Class A or Class B operation
• External supply voltage monitoring
• Can power one 24V or two 12V solenoids
• Panel controlled status LED
• Analog communications
• Operating Voltage: 15 to 32 VDC
• Temperature Range: 14°F to 140°F (-10° to 60°C)
• Relative Humidity: 10% to 95% noncondensing
• Dimensions: 4.275″ W × 4.675″ H × 1.400″ D (10.86 cm W × 11.87 cm H × 3.56 cm D)
