Description

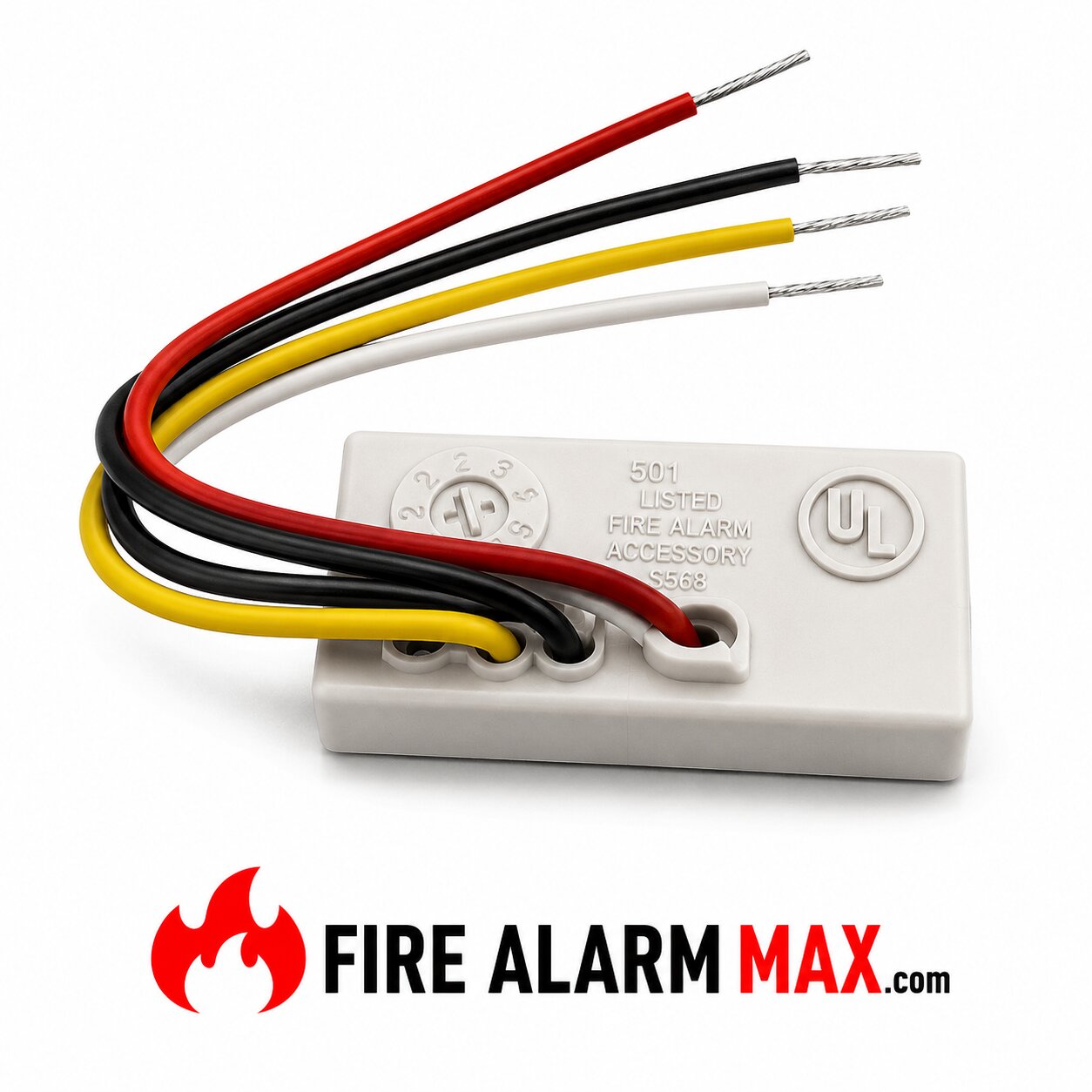

Four different monitor modules are available for Notifier’s FireWarden Series intelligent control panels for a variety of applications. Monitor modules supervise a circuit of dry-contact input devices, such as conventional heat detectors and pull stations, or monitor and power a circuit of two-wire smoke detectors (NZM-100(A)). The Notifier NMM-100P Addressable Monitor Module is a miniature monitor module, a mere 1.3″ (3.302 cm) H x 2.75″ (6.985 cm) W x 0.65″ (1.651 cm) D that
supervises a Style B (Class B) circuit of dry-contact input devices. Its compact design allows the NMM-100P to be mounted in a single-gang box behind the device it monitors

The Notifier NMM-100P Addressable Monitor Module is used to monitor a single device or a zone of four-wire smoke detectors, manual fire alarm pull stations, waterflow devices, or other normally-open dry-contact devices. It may also be used to monitor normally-open supervisory devices with a special supervisory indication at the control panel. In addition, each NMM-100P uses one of the available module addresses on an SLC loop. Also, it responds to regular polls from the control panel and reports its type and the status (open/ normal/short) of its Initiating Device Circuit (IDC)

For example, below you will find some features:

•  Built-in type identification automatically identifies this device as a monitor module to the panel.
• Powered directly by a two-wire SLC loop. No additional power required.
• High noise (EMF/RFI) immunity.
• Direct-dial entry of address: 01 – 99 on FireWarden-100-2, 01 – 50 on FireWarden-50.
• LED flashes during normal operation and latches on steadily to indicate an alarm.
