Description

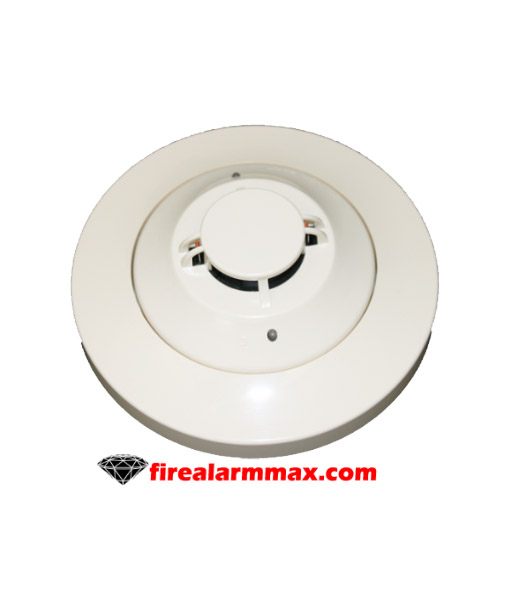

The NP-100, NP-100T, and NP-100R addressable, low-profile plug-in photoelectric detectors use a state-of-the-art photoelectric sensing chamber with communications to provide open area protection and are used exclusively with NOTIFIER’s FireWarden Series (FireWarden-100-2 and FireWarden-50) as well as Spartan (NSP-25) Addressable Fire Alarm Control Panels (FACPs). Also, the NP-100T(A) adds thermal sensors that will alarm at a fixed temperature of 135°F (57°C). Furthermore, since these detectors are addressable, they will help emergency personnel quickly locate a fire during its early stages, potentially saving precious rescue time while also reducing property damage. Two LEDs on each sensor light to provide a local, visible sensor indication. Remote LED annunciator capability is available as an optional accessory, PN RA100Z(A).

Each detector can have its sensitivity tested (required per NFPA 72, Chapter 14 on Inspection, Testing, and Maintenance) when installed/connected to a FireWarden-100-2 or FireWarden-50 addressable fire alarm control panel. The results of the sensitivity test printed off the FireWarden-100-2 or FireWarden50 for record keeping.

These detectors constructed of off-white fire resistant plastic. NP-100(A) series plug-in, low-profile smoke detectors designed to commercial standards as well as an attractive appearance.

Features / Specifications

• Two-wire loop connection
• Unit uses base for wiring
• Integral communications
• Addressable by device
