Description

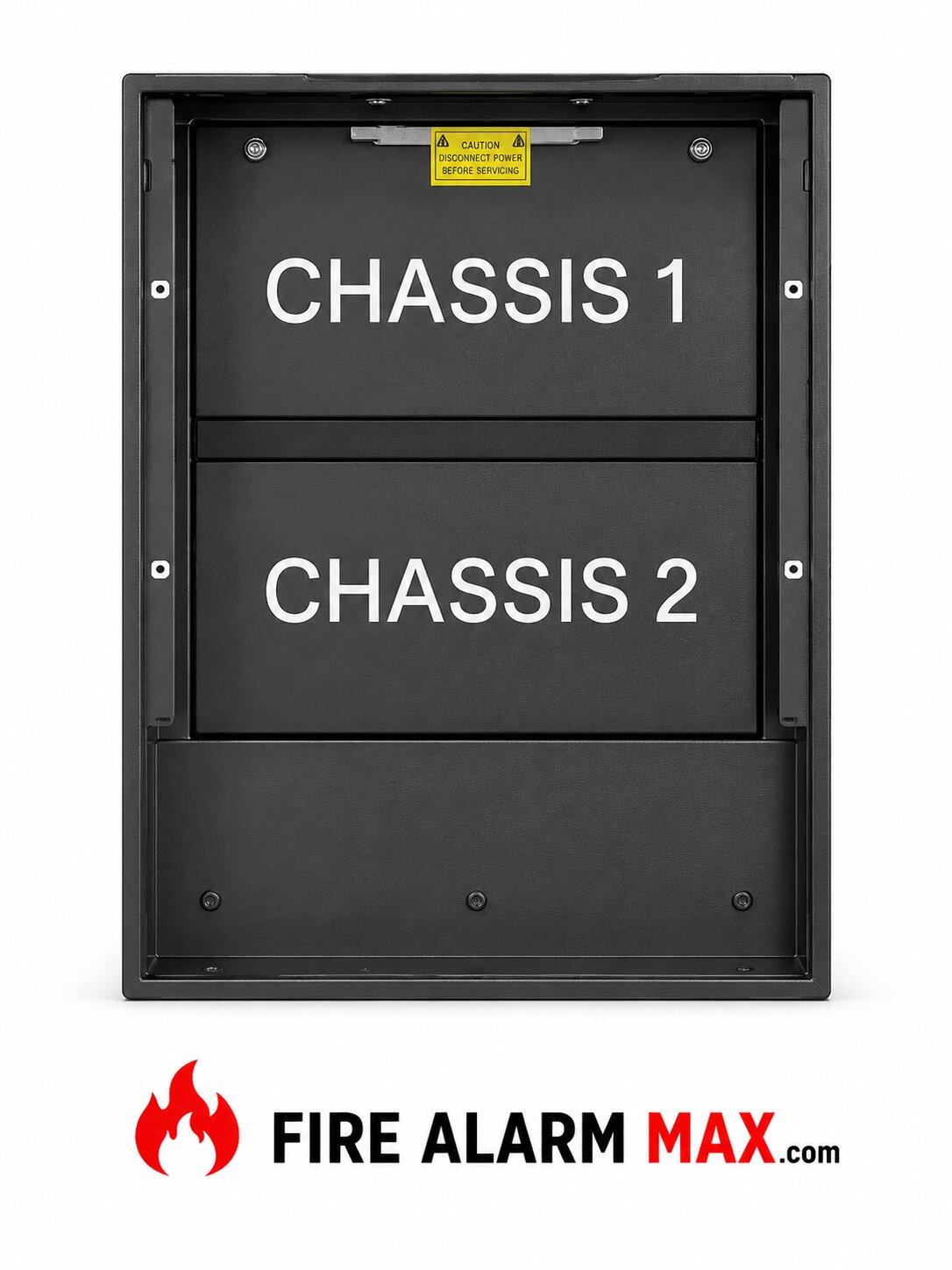

Notifier SBB-B4 backbox assembly. two tiers, black, 26.88 lbs.

All cabinets for NOTIFIER fire alarm control panels a r e fabricated from 16-gauge steel. The cabinet assembly consists of two basic parts: a backbox and a locking door. Cabinets a r e available in black or red, with or without windows. The window model provides a tasteful combination to accent the decor of the finest lobby setting.

• The key-locked door is provided with a pin-type hinge and two keys. The necessary hardware to mount the door to the backbox.
• The backbox i s engineered to provide ease of entry for the installer. Knockouts a r e positioned at numerous points to aid the installer in bringing a conduit into the enclosure. With a minimum of hardship.
• Right- or left-hand hinges, selectable in the field. The door opens 180°.
• Cabinets a r e arranged in four standard sizes. A (one tier) through D (four tiers), plus a mini cabinet (AA, one tier without a battery compartment).
• A trim ring option is available for semi-flush mounting.
• Chassis bridge available for assembling multiple CHS-4 chassis external to the backbox.
• Certified for seismic applications w hen used with the appropriate seismic mounting kit.

A complete cabinet assembly consists of a door, a backbox, an optional battery plate, and an optional semi-flush trim ring. For each cabinet required, order one “DR” door and one “SBB” backbox. The BP2-4 battery plate i s required for each cabinet assembly. That mounts batteries and/or a power supply in the lower position of the cabinet. The optional trim ring is an attractive “picture frame”-style black metal ring.
