Description

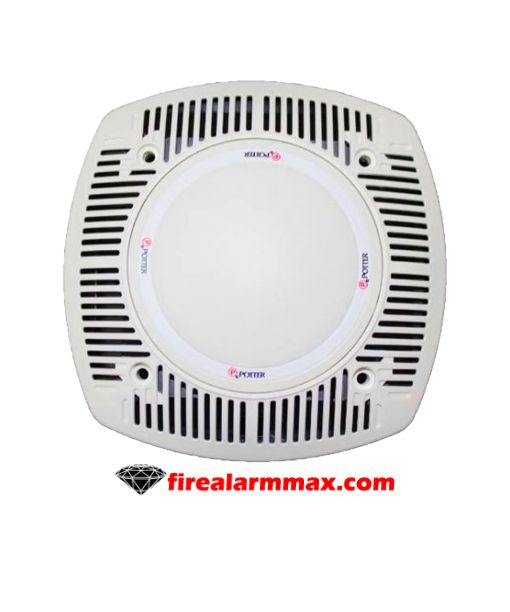

The Potter Electric Signal FASPKR-W is a low-profile indoor speaker. This device can be use as either a wall or ceiling speaker. The Potter Electric Signal FASPKR-W is a ceiling mount, low profile, field adjustable speaker/strobe, and the FASPKR is a universal mount speaker designed to meet code requirements for audio, visual, and voice communications. The FASPKR-W Series are quality speaker products offering dependable evacuation signaling, visual alarms, or a combination of both.

The FASPKR-W has high output tamperproof candela selections of 15, 30, 75, 95, and 115. The SPKSTR-24CLP and FASPKR provide a 25 or 70.7 VRMs speaker with field selectable power taps of 1/8W, 1/4W, 1/2W, 1W, 2W, or 4W. The SPKSTR-24CLP strobes can be synchronize using the Potter AVSM Synchronization Control Module, FACP, or power supplies that produce a Gentex Synchronization Protocol.

The FASPKR-W can be mount to a 4” X 2 1/8” deep back box without an extension ring or Potter SPKRBB surface back box. The FASPKR-W is construct of high texture plastic.

Features / Specifications

• 24VDC tamperproof selectable candela options of 15, 30, 60,75, and 110
• Speaker voltage 25 or 70.7 VRMs standard, field selectable
• Field selectable power taps: 1/8W, 1/4W, 1/2W, 1W, 2W, 4W
• High quality dBA output (intelligible)
• Frequency range 400-4000 Hz
• Screw Terminals, separate in/out wiring (18-12 gauge)
• Tamperproof grill

Download the Specification sheet in *.pdf format
