Description

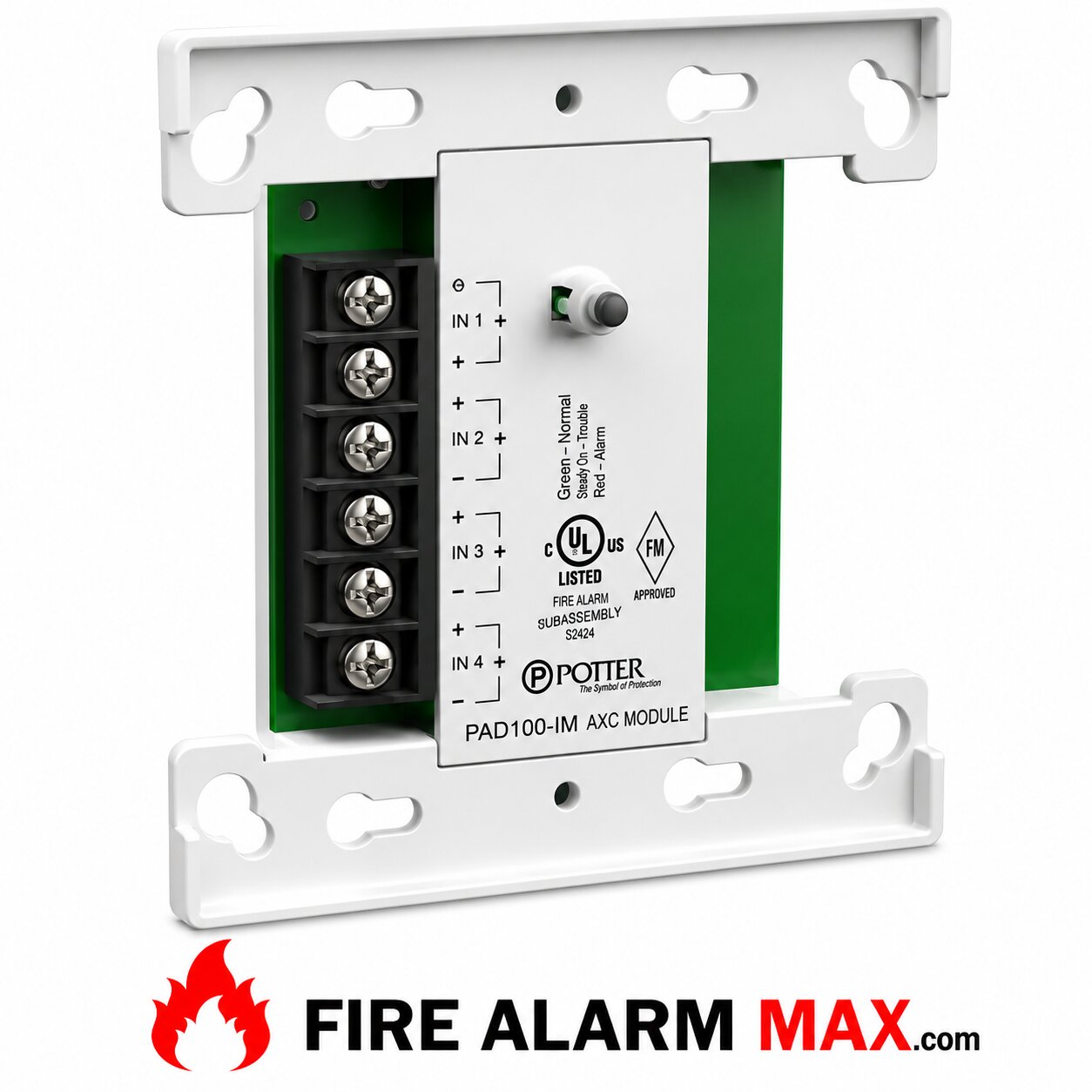

Potter PAD100-IM

Features
Isolates short circuits within the SLC loop.
SLC Class A, Class X & Class B
Mounts in a standard 4” or double gang box
Wire terminals a re accessible w hen mounted in a box
All wiring terminals accept 22 to 12 AWG
The product includes a 5-year warranty
UUKL Listed for Smoke Control

Description
The PAD100-IM module does not require an SLC loop address, does consume power from the SLC loop. The module protects short circuits by limiting the number of affected devices. W hen the PAD100-IM detects a short circuit on the SLC loop. It disconnects the outgoing side of the module to prevent the short from affecting the rest of the SLC loop. The PAD100-IM includes one red LED to indicate the module’s status. W hen the module i s shorted, the LED will light continuously. The short i s removed, the PAD100-IM will automatically restore to a cleared condition.
Application
The PAD100-IM i s compatible with Potter’s IPA series addressable fire alarm control panels. The PAD100-IM i s used, to provide additional reliability. By isolating a segment of the SLC loop where a short circuit has occurred.

Potter PAD100-IM

Isolates short circuits within the SLC loop.
SLC Class A, Class X & Class B
Mounts in a standard 4” or double gang box
Wire terminals a re accessible w hen mounted in a box
All wiring terminals accept 22 to 12 AWG
The product includes a 5-year warranty
UUKL Listed for Smoke Control
