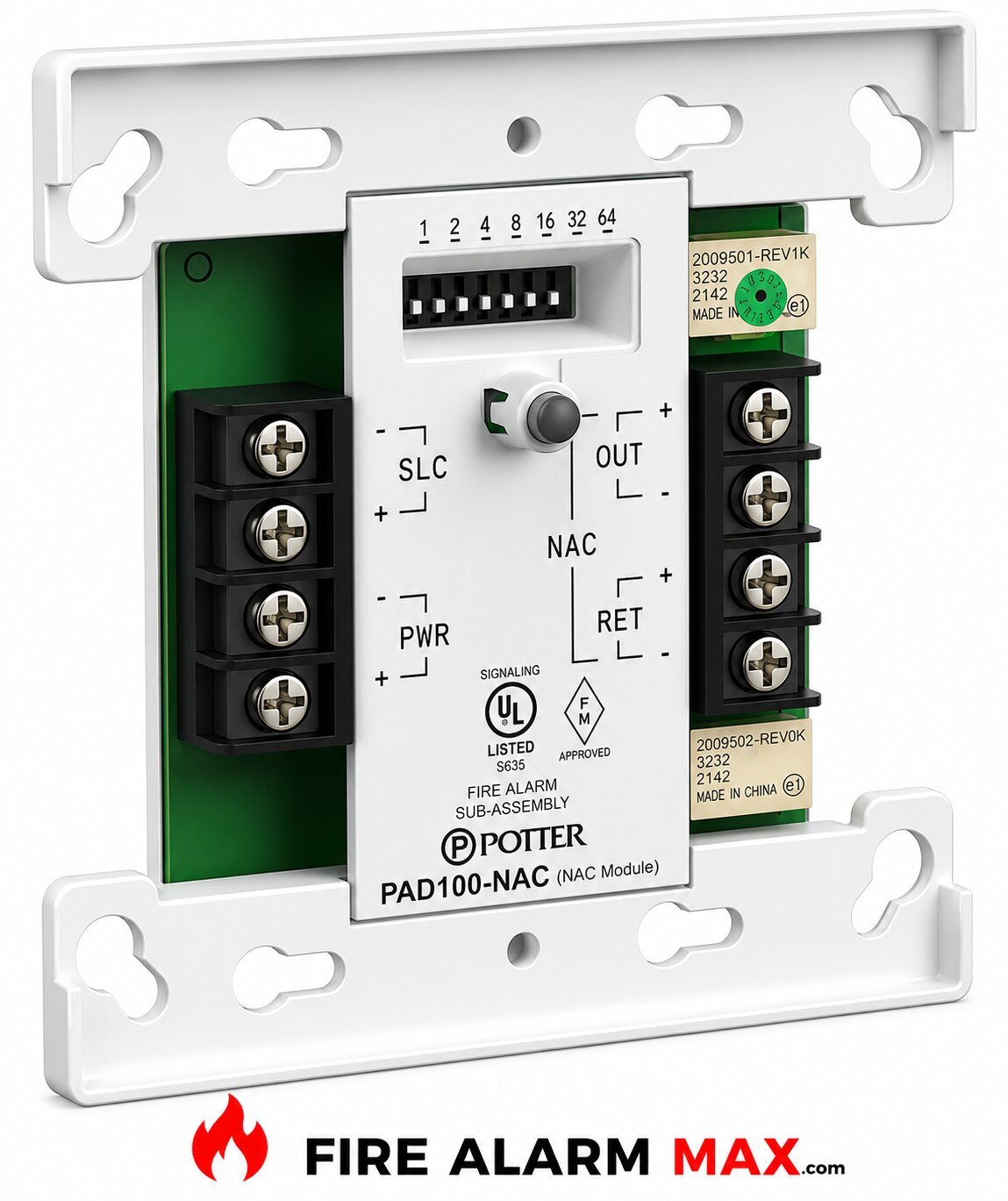

Potter PAD100-NAC

Features
Monitored output module that provides an additional supervised output
Can b e used as a NAC or Releasing Output
NAC can b e wired Class A or Class B
Monitors presence of 24 VDC Aux Power
SLC Class A, Class X & Class B
Mounts in a standard 4” or double gang box
Wiring terminals a re accessible w hen mounted in the box
All wiring terminals accept 22 to 12 AWG
The product includes a 5-year warranty
UUKL Listed for Smoke Control

Description
The PAD100-NAC module uses one (1) address on an SLC Loop. The module provides a programmable source of power to supervise and control one (1) Class B. Or Class A Notification Appliance or one (1) Class B Releasing Circuit. The module requires and supervises a 24 VDC auxiliary power connection. The PAD100-NAC includes one red LED to indicate the module’s status. In normal conditions, the LED flashes w hen the device i s b eing polled by the control panel.
Application
The PAD100-NAC i s compatible with Potter’s IPA and AFC/ARC series addressable fire alarm control panels. The PAD100-NAC i s a monitored Notification Appliance Circuit. That wires to the SLC loop to provide an additional notification circuit. W hen used with a Potter addressable releasing panel, the PAD100-NAC can provide an additional releasing circuit.
Setting the Address
Each addressable SLC device must b e assigned an address. The address i s set using the DIP switches on the PAD100-NAC module.
B efore connecting a device to the SLC loop, take the fo llowing precautions. To prevent potential damage to the panel or device:
Power to the device i s removed.
Field wiring i s correctly installed.
Field wiring has no open or short circuits.
