Description

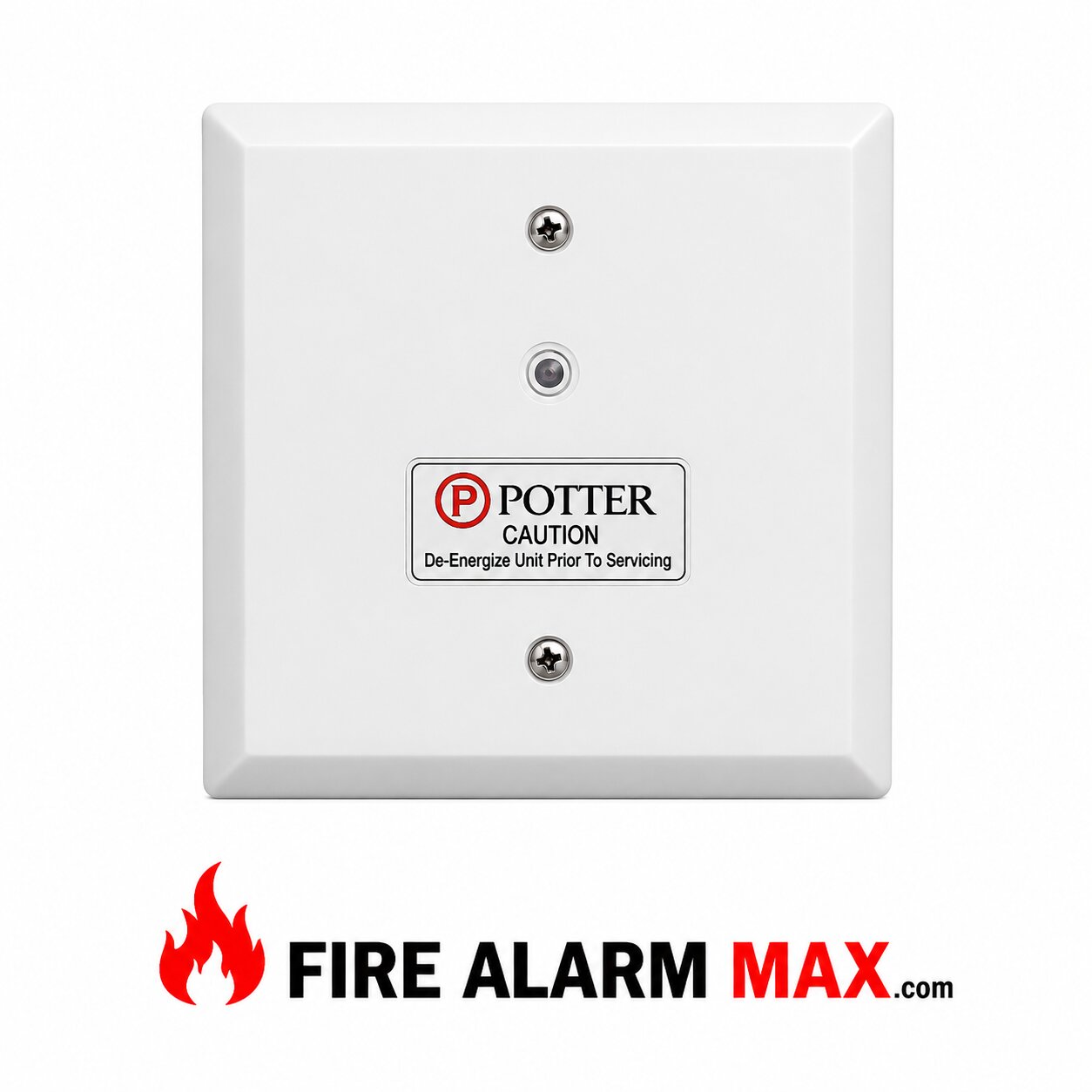

Potter PAD300-IM – Addressable Isolator Module

The Potter PAD300-IM Isolator Module is an addressable isolator designed to enhance the reliability of fire alarm systems by protecting the Signaling Line Circuit (SLC) from short circuit faults. When a fault is detected, the module automatically isolates the affected section of the loop, allowing the rest of the system to continue operating normally.

This module does not require an address, making installation simple while still drawing power from the SLC loop. It is commonly used in Class A, B, and X wiring configurations to segment circuits and limit the impact of wiring issues.

Key Features

• Addressable isolator module for SLC loop protection
• Automatically isolates short circuits to maintain system operation
• Does not require an SLC address (draws power from the loop)
• Supports Class A, B, and X circuit configurations
• LED status indicator for fault condition monitoring
• Automatically restores once the fault is cleared
• Mounts in standard 4″ square or double-gang electrical boxes
• Compatible with Potter IPA Series fire alarm systems
