Description

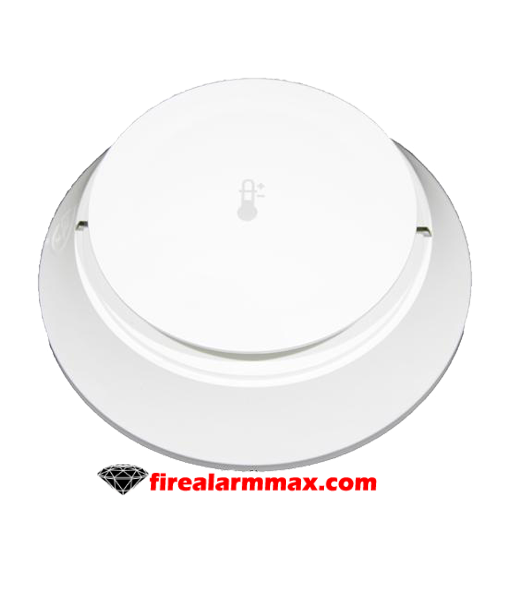

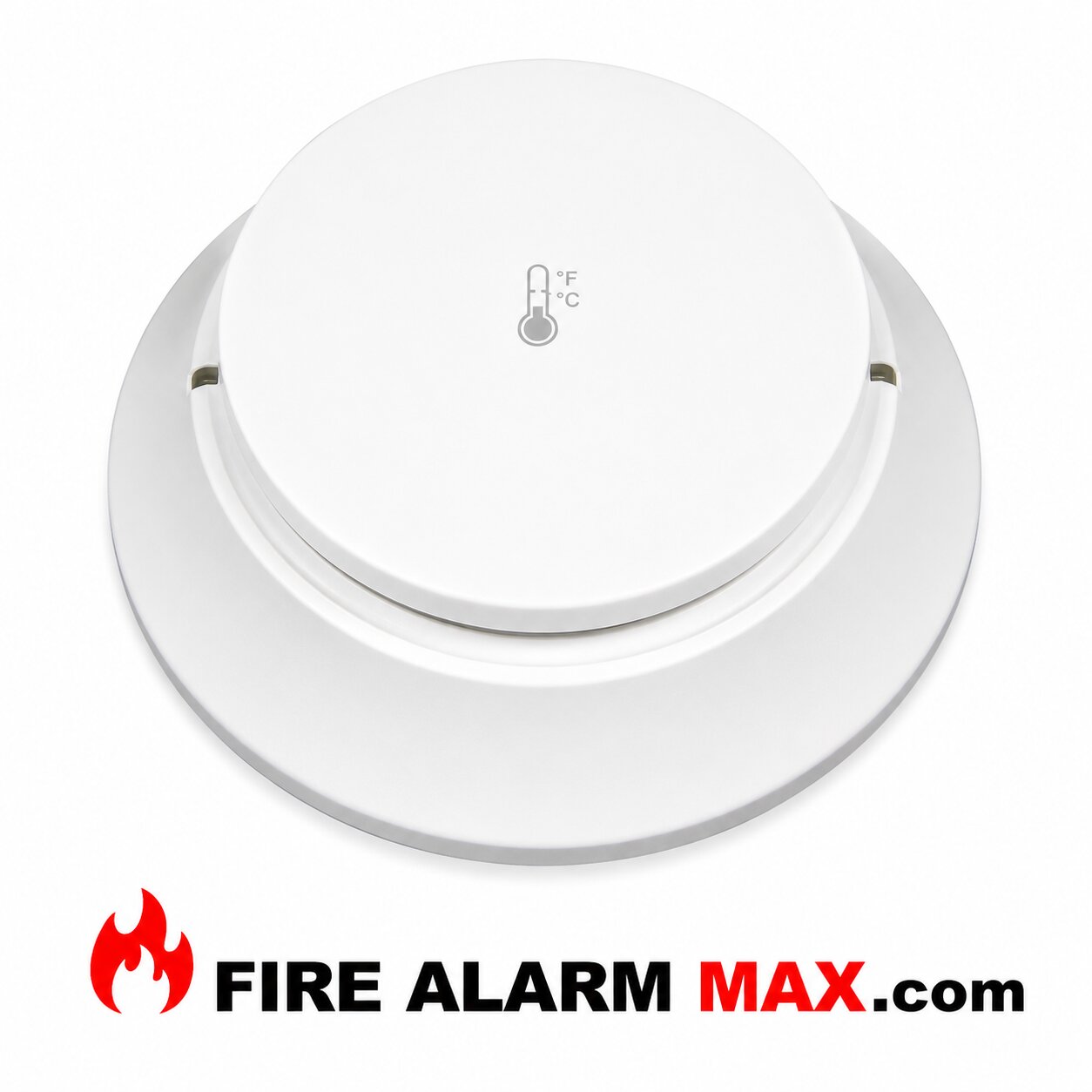

The Silent Knight IDP-HEAT-W Fixed Temperature Heat Detector a re plug-in thermal detectors, with integral communication. That provides features that surpass conventional detectors. These thermal detectors a re for use with Silent Knight IFP-series fire alarm control panels (FACPs). The detector sensitivity can b e program from the FACP software. Sensitivity i s continuously monitored and reported to the FACP. The point ID capability allows each detector’s address to b e set with rotary address switches. Providing exact detector locations for selective maintenance. Wh en chamber contamination reaches unacceptable levels.

The IDP thermal detectors plug into a compatible IDP-series detector base. The Silent Knight IDP-HEAT-W Fixed Temperature Heat Detector i s a fixed temperature. And rate-of-rise thermal detector that uses a thermistor sensing circuit to produce 135ºF (57ºC) thermal protection.

B elow we can describe some features:

• Innovative thermistor sensing circuit.
• Sleek, low-profile design.
• Reliable analog communications for trouble-free operation.
• Age resistant polymer housing.
• Superior EMI resistance for reliability.
• Variety of mounting options to meet any application.
• Dual LED indicators for 360º visibility.
• The detector transmits a signal to indicate maintenance is require.
• Plug-in mounting provides ease of installation.
• Tamper-proof feature is available on mounting bases.
• Rotary address switches for fast installation.
