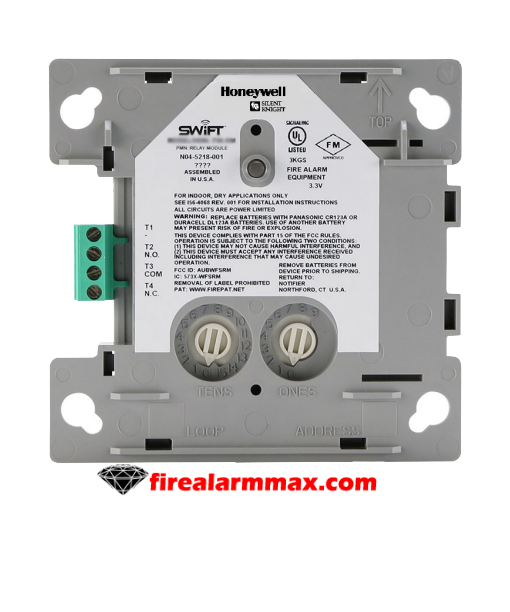

The Silent Knight WSK-RELAY SWIFT wireless relay module allows the control panel to switch contacts by code command. The relay contains an isolated set of Form-C contacts, which operate as a SPDT switch. Circuit connections to the relay are not supervised by the module. The SWIFT relay module used to activate functions such as a remote power supply (in conjunction with a monitor module), elevator recall, door holders and fan shutdown of wired devices or SWIFT devices within the same mesh network. The module also includes a panel-controlled LED indicator.
The devices communicate across the mesh network through a gateway to the FACP. The FACP views the SWIFT wireless device and another addressable device on the system providing similar detection functions and outputs as a wired counterpart. In addition, both wired and wireless devices can be present on the same FACP to meet the needs of a given application. A SWIFT wireless system can use any combination of modules, smoke, or heat detectors.
The mesh network within the SWIFT system creates a child-parent relationship between the devices; So that each device has two parents providing a second path for communications on every device. If one device can no longer operate for any reason; The rest of the devices can still communicate with each other; Directly or through one or more intermediate devices.
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
Your Payment information is processed securely. We do not store credit card details, nor have access to your credit card information.
Orders ship same day
Thousands of parts in stock
Reliable products & service
Order anytime, anywhere
The Silent Knight WSK-RELAY SWIFT wireless relay module allows the control panel to switch contacts by code command. The relay contains an isolated set of Form-C contacts, which operate as a SPDT switch. Circuit connections to the relay are not supervised by the module. The SWIFT relay module used to activate functions such as a remote power supply (in conjunction with a monitor module), elevator recall, door holders and fan shutdown of wired devices or SWIFT devices within the same mesh network. The module also includes a panel-controlled LED indicator.
The devices communicate across the mesh network through a gateway to the FACP. The FACP views the SWIFT wireless device and another addressable device on the system providing similar detection functions and outputs as a wired counterpart. In addition, both wired and wireless devices can be present on the same FACP to meet the needs of a given application. A SWIFT wireless system can use any combination of modules, smoke, or heat detectors.
The mesh network within the SWIFT system creates a child-parent relationship between the devices; So that each device has two parents providing a second path for communications on every device. If one device can no longer operate for any reason; The rest of the devices can still communicate with each other; Directly or through one or more intermediate devices.
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
