Description

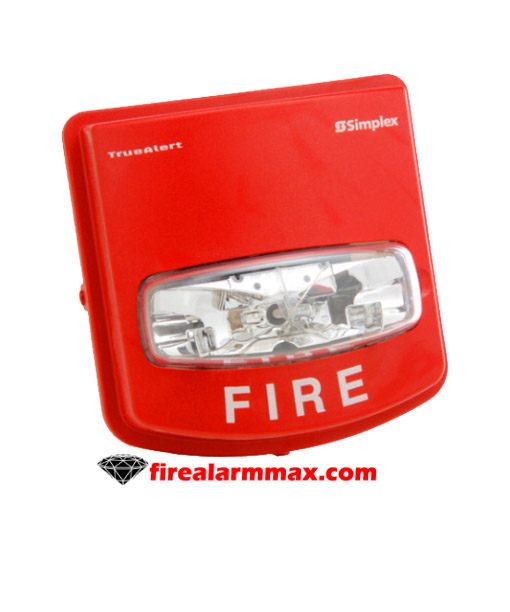

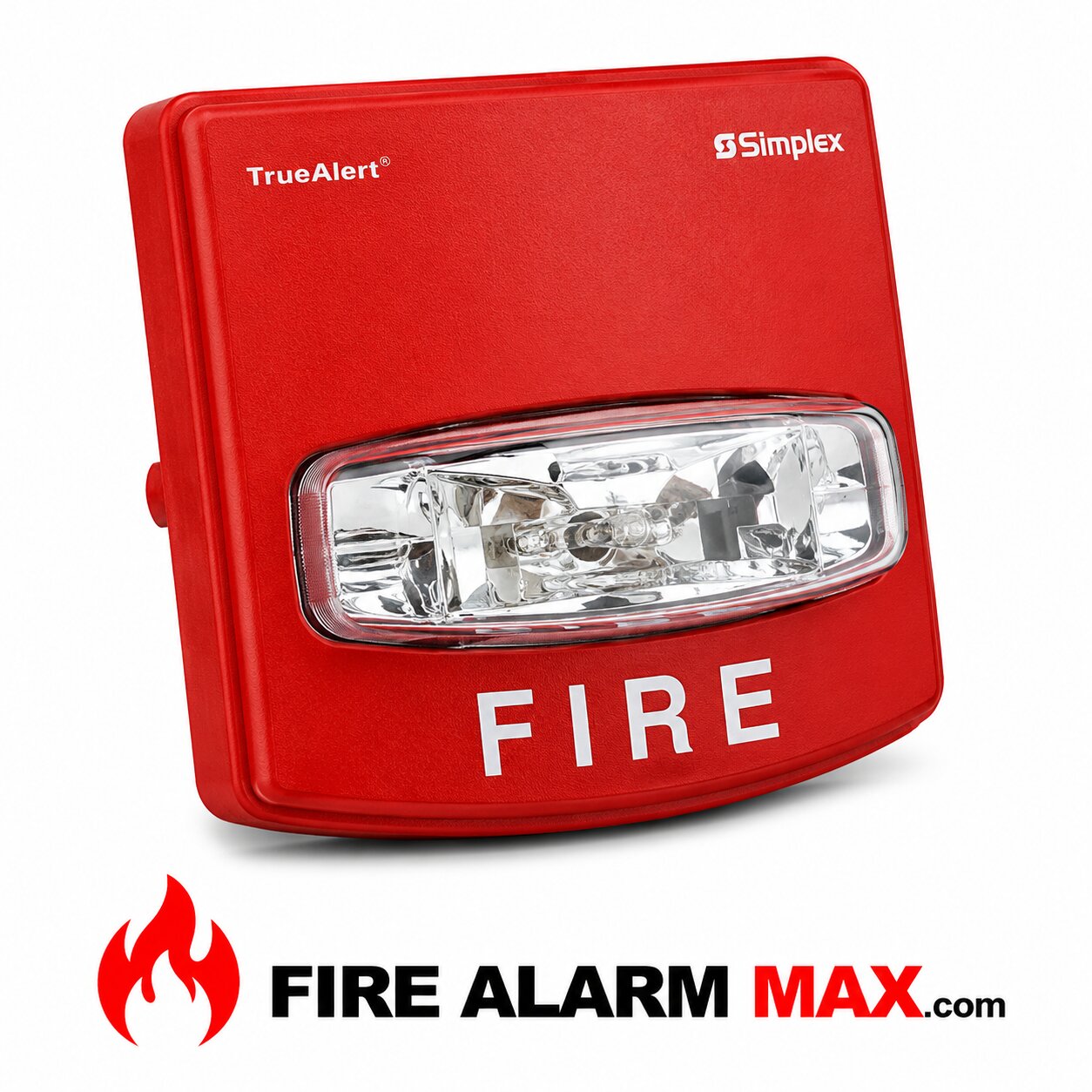

Simplex 4906-9105 weatherproof multi-candela provides VO and A/V SmartSync operation for indoor and outdoor, extended temperature, and extended humidity applications. Besides, the enclosures are impact and vandal resistant and provide a convenient strobe intensity selection. Because Simplex 4906-9105 can be select for intensity output, on-site model inventory is minimize and changes encounter during construction are easily accommodate.

During installation, use the selection plug at the back of the housing to determine the strobe intensity. Use the attached flag with black letters on a yellow background to see the selected intensity at the side of the strobe lens.

SmartSync operation mode means that a two-wire circuit can activate both the horn and strobe on the same NAC, then the horn can be silence while the strobe remains flashing. The horn operates as “on-until-silenced” while the strobe operation is “on-until-reset.”

Features / Specifications

• A visible intensity selection jumper is secure behind the strobe housing
• Polarized input allows connection to compatible reverse polarity, supervised notification appliance circuit (NAC).
• Regulated circuit design ensures consistent flash output and provides controlled inrush current.
• A/V appliances have an efficient electronic horn.
• Rugged, high impact, flame retardant thermoplastic housings
• Red housings are for indoor or outdoor applications and provide UV light stable color
