Description

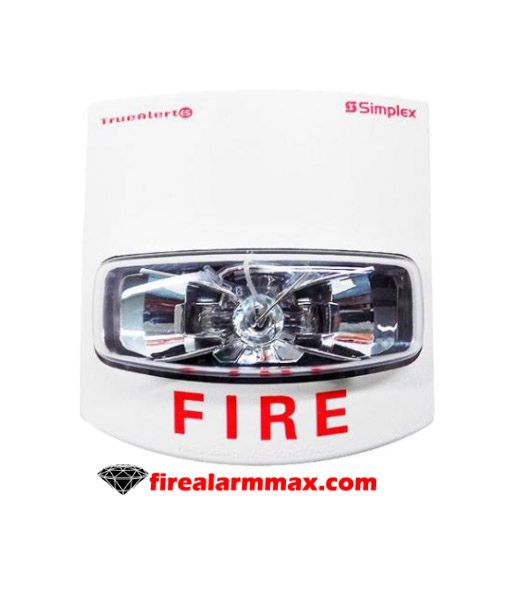

Simplex 49VO-WWF-BA addressable strobes a re individually addressed visible notification appliances. That receive power, supervision, and control signals from the Simplex fire alarm control panel.

Individually addressed and controlled multi-candela Simplex 49VO-WWF-BA notification appliances provide:

• Multi-candela xenon strobe with synchronized 1 Hz flash rate. And with intensity programmable from the control unit or jumper selected as 15, 30, 75, 110, 135, or 185 cd
• Wiring supervision to each appliance allowing “T-tapped” connections for Class B circuits to simplify wiring
• Self-Test Mode allows on-board sensors to detect the strobe and horn output. And report their status to the control unit
• True Alert Device Reports at the control unit detailing appliance point ID, custom label, type, and candela setting
• Magnet Test diagnostics to assist checkout and testing of appliances and wiring
• Compatibility with ADA requirements

LED Indicator and Magnet Test:

• W hen the controller i s in diagnostic mode, the Magnet Test pulses the LED to indicate appliance address. And can b e set to briefly flash the strobe

Mechanical design:

• Rugged, high impact, flame retardant thermoplastic housing in red with white letters or white with red letters, with clear lens
• Separate covers a re available to change appliance type on-site or for
  replacement
• Optional mounting adapters a re available to cover surface mounted
  electrical boxes and to adapt to Simplex, 2975-9145 boxes
• Optional red wire guards
• In/out wiring terminals for 18 AWG to 12 AWG
