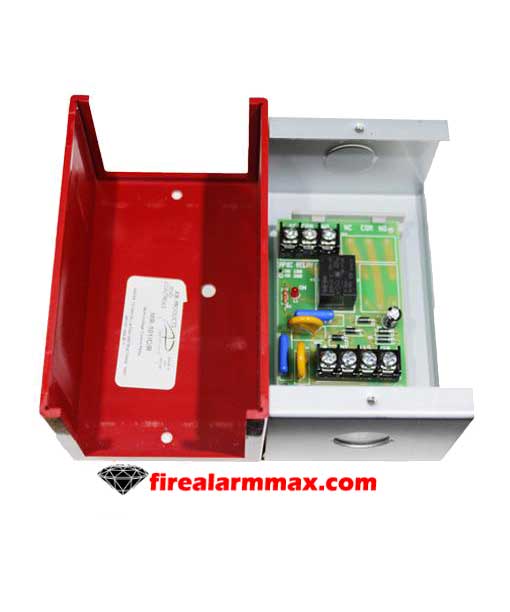

The Space Age SSU-MR-201/C/R Series Multi-Voltage Control Relays offer DPDT resistive contacts. Operated by one of four input control voltages. A single relay i s energized from a voltage source of 24VDC, 24VAC, and 120VAC. Or 230VAC by wiring to appropriate input terminals. Each relay position contains a red LED which indicates the relay coil i s energized. Relays snapped apart from a standard 4-module assembly. And used independently. These devices a r e ideal for applications where local contacts a r e required for system status. Remote contacts for control of electrical loads, and general-purpose switching. They a r e suitable for use with HVAC, temperature control, fire alarm, and security. Energy management and as lighting control systems.

Main Features

Relays energized from a voltage source of 18 to 35VDC, 24VAC, 120VAC, or 230VAC.

Each relay position contains a red LED, which illuminates the coil i s energized.

Single, dual, or triple relay modules snapped apart from the standard 4-position master.

DC input i s polarized.

Continuous Duty Use.
