Description

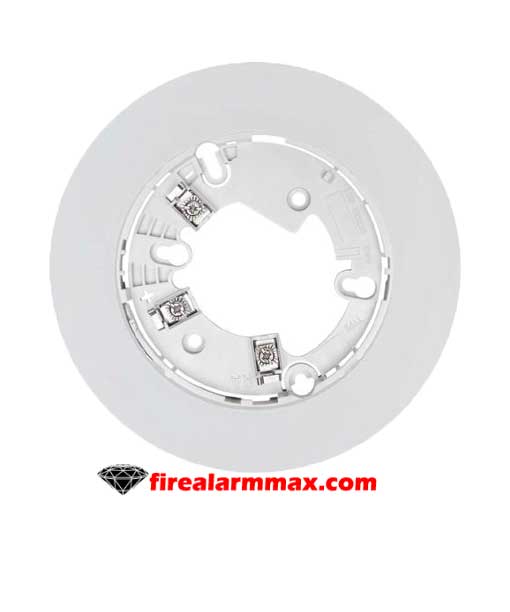

Select Series low-frequency sounder bases are designed to meet the NFPA 72 sleeping space requirement to produce a fundamental frequency of 520 Hz +/- 10% with a square wave or its equivalent. In fact, studies show that a lower frequency, centered around 520 Hz; is the most ideal to wake sleeping occupants, even those with mild to severe hearing loss. Also, the System Sensor B300-6 is fully compatible with existing B501BH-Series sounder base installations. The device enables users to select one of two B501-supported tones (ANSI Temporal 3 or Continuous) through a jumper.

The System Sensor B300A-6 adopts the same address as the detector but uses a unique device type on the loop. Besides, the Fire Alarm Control Panel (FACP) can use that address to command an individual sounder or a group of sounders to activate. The command set from the FACP can be tailor to multiple event-driven tone outputs allowing selection of volume (75 or 85 dBA), tone (ANSI Temporal 3, ANSI Temporal 4 or March Time), and group. In addition, some FACPs will enable custom tone patterns.

The System Sensor B300A-6 recognizes the System Sensor synchronization protocol. This enables it to be use as a component of the general evacuation signal along with other System Sensor AV appliances; when connected to a power supply or FACP output capable of generating the System Sensor synchronization pulses.

Features / Specifications

• Bases enable quick and secure detector plug-in
• SEMS screws provide easy wiring connection
• Support for 12-24 AWG provides installation flexibility
• Multiple base formats meet application requirements
• Pre-wired mounting plate simplifies installation
• Application driven feature sets

Download the Specification sheet in *.pdf format
