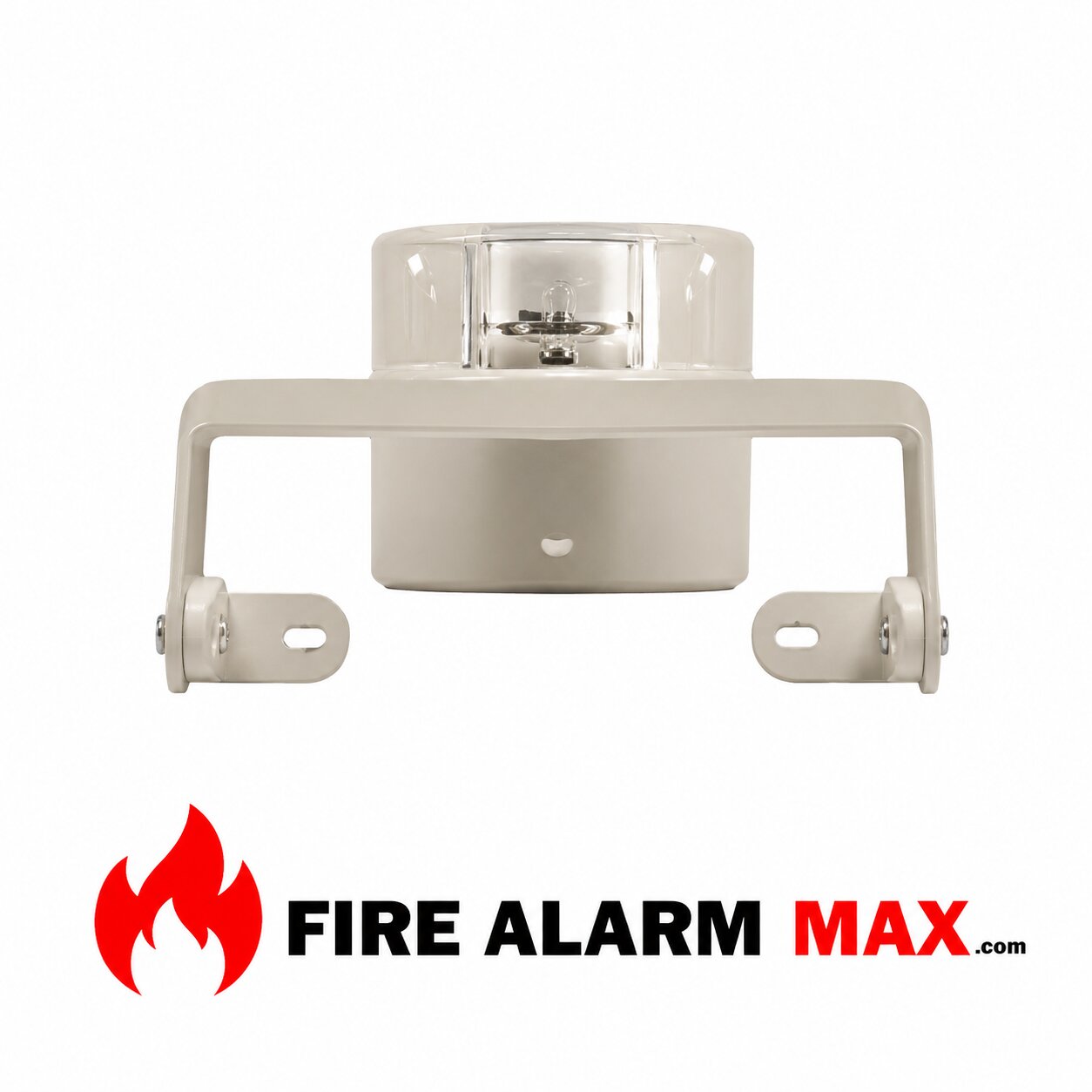

The System Sensor BEAMMMK allows reflected beam detectors to be placed either a vertical wall or the ceiling. Furthermore, the kit allows for additional alignment where the detector cannot be mounted within 10° of each other. In addition, the BEAMMMK includes the hardware necessary to mount either a single transmitter/receiver unit or a single reflector.
In addition, the ceiling bracket is composed of two parts that should be assembled with the inside part between the ceiling and the outside part. Also, the brackets should be mounted so that the slot in the front of each bracket is facing the other bracket
For proper operation of the System Sensor BEAMMMK beam detector it must be securely mounted to ensure no subsequent movement of the beam detector will occur after the installation is completed. Then, see “Detector Placement and Mounting” sections of the beam detector manual for further details.
The kit includes the following parts:
2 – Ceiling mount bracket
1 – Wall mount bracket
1 – “U” bracket
2 – “L” bracket
1 – Horizontal adjustment screw (ceiling) #10-24 × 2 1/4″
1 – Horizontal adjustment screw (wall) #10-24 × 13/8″
4 – Allen screw (#10-24 × 1/2″ & #10-24 × 5/8″)
4 – Fender washer (plastic & metal)
2 – Washer plastic #10
4 – Washer metal #10 & split-lock #10
2 – Hex nut #10-24
1 – Allen wrench
| Weight | 3 lbs |
|---|---|
| Dimensions | 12 × 8 × 8 in |
