Description

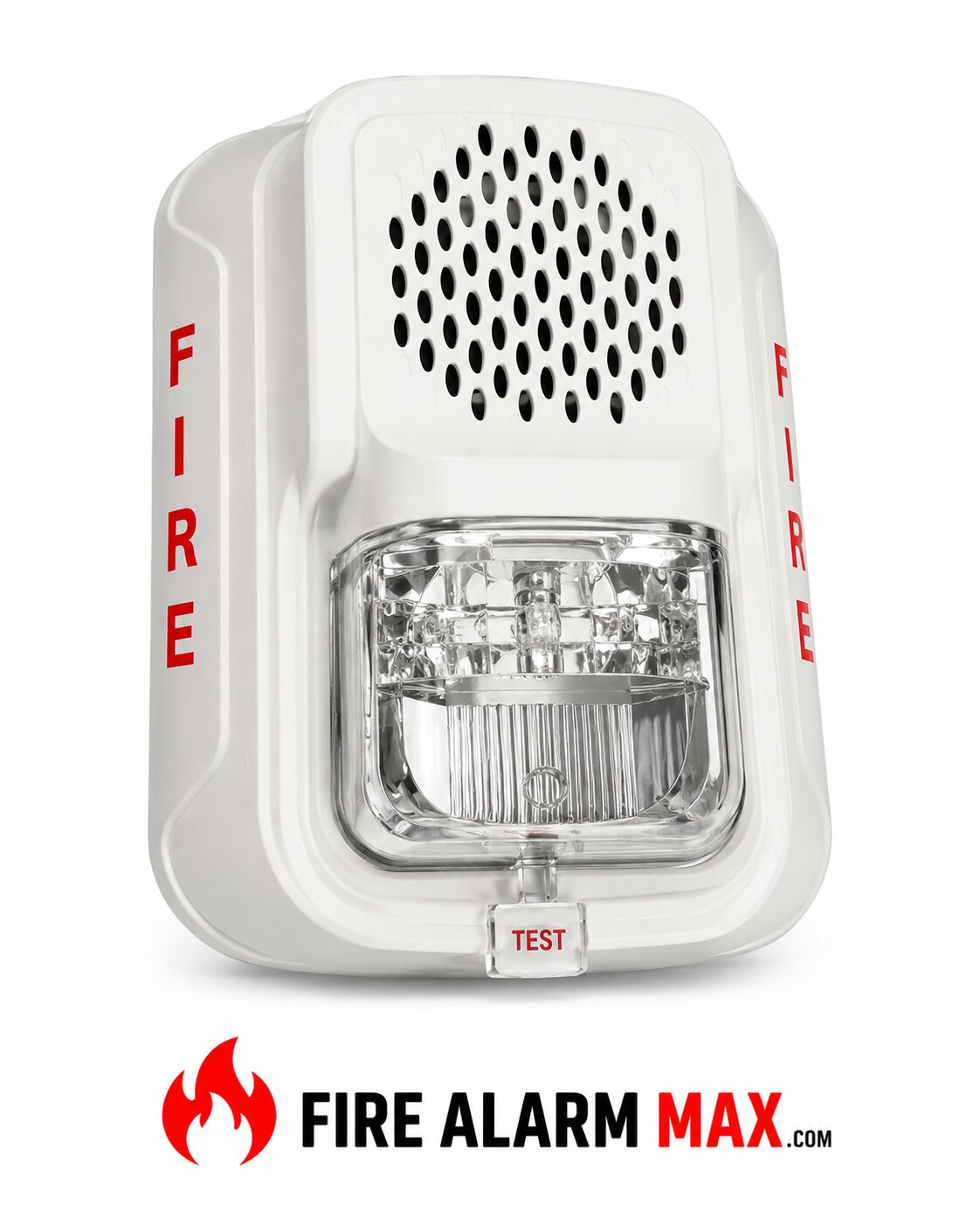

The L-Series offers the most versatile and easy-to-use line of low-frequency sounder and low-frequency sounder strobes in the industry. With white and red plastic housings, listed for wall and ceiling mounting, System Sensor P2WL-LF Low Frequency can meet virtually any application requirement.

The low-frequency sounder and low-frequency sounder strobes were design to address the NFPA 72 sleeping space requirements that require a low-frequency notification appliance that operates within the frequency range of 520 Hz ± 10% and is of a square wave tone. Like the entire L-Series product line, they include a variety of features that increase their application versatility while simplifying installation. All devices feature plug-in designs with minimal intrusion into the backbox, making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults.

To further simplify installation and protect devices from construction damage, System Sensor P2WL-LF uses a universal mounting plate with an onboard shorting spring, so installers can test wiring continuity before the device is installed. Installers can also easily adapt devices to suit a wide range of application requirements using field-selectable candela settings; 24- volt operation, and a rotary switch for 520 Hz low-frequency sounder tones.

Features / Specifications

• 520 Hz ± 10% square wave tone, NFPA compliance
• Full candela range plus High/Low tone options to optimize current draw for a wide variety of applications
• Compact, standard, and round ceiling options
• Plug-in design with minimal intrusion into the backbox
• Mounting plate shorting spring checks wiring continuity before device installation
