Description

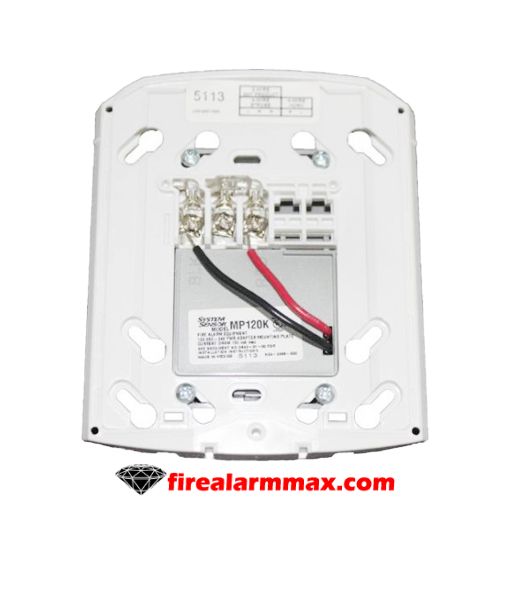

The System Sensor Spectr Alert MP120K Mounting Plate is designed to allow the use of 120 VAC to power SpectrAlert Advance horns, strobes, horns/strobes, chimes, as well as chime/ strobes. Also, The MP120K consists of a SpectrAlert Advance mounting plate that has been fitted with a power supply that converts 120VAC to nominal 24V FWR.

In Fact, the System Sensor Spectr Alert MP120K Mounting Plate Adapter must be installed using a 120 VAC power source. Besides, this unit can only be used for non-synchronous applications and it will not work with Spectr Alert Sync Circuit Modules.

This module has pig-tail wires as well as is intended to be wired without rigid connections inside a standard electrical box.

For installation instructions see the data sheet below.

Features / Specifications

• Standard Operating Temperature: –40°F to 151°F (–40°C to 66°C)
• Humidity Range: 10 to 93% non-condensing (indoor products)
• Nominal Voltage: Regulated 120 VAC
• Operating Voltage Range: 96-132 VAC
• Current Draw From AC Line: 150 mA max.
• Designed for both indoor and outdoor use
• Plug-in design eliminates ground faults
• Wall- or ceiling-mount lenses available
• Enables flush mounting of outdoor devices to brick, ceramic tile, concrete, and masonry brick
• UL 1638 listed

Download the Specification sheet in *.pdf format
