Edwards KI-SB

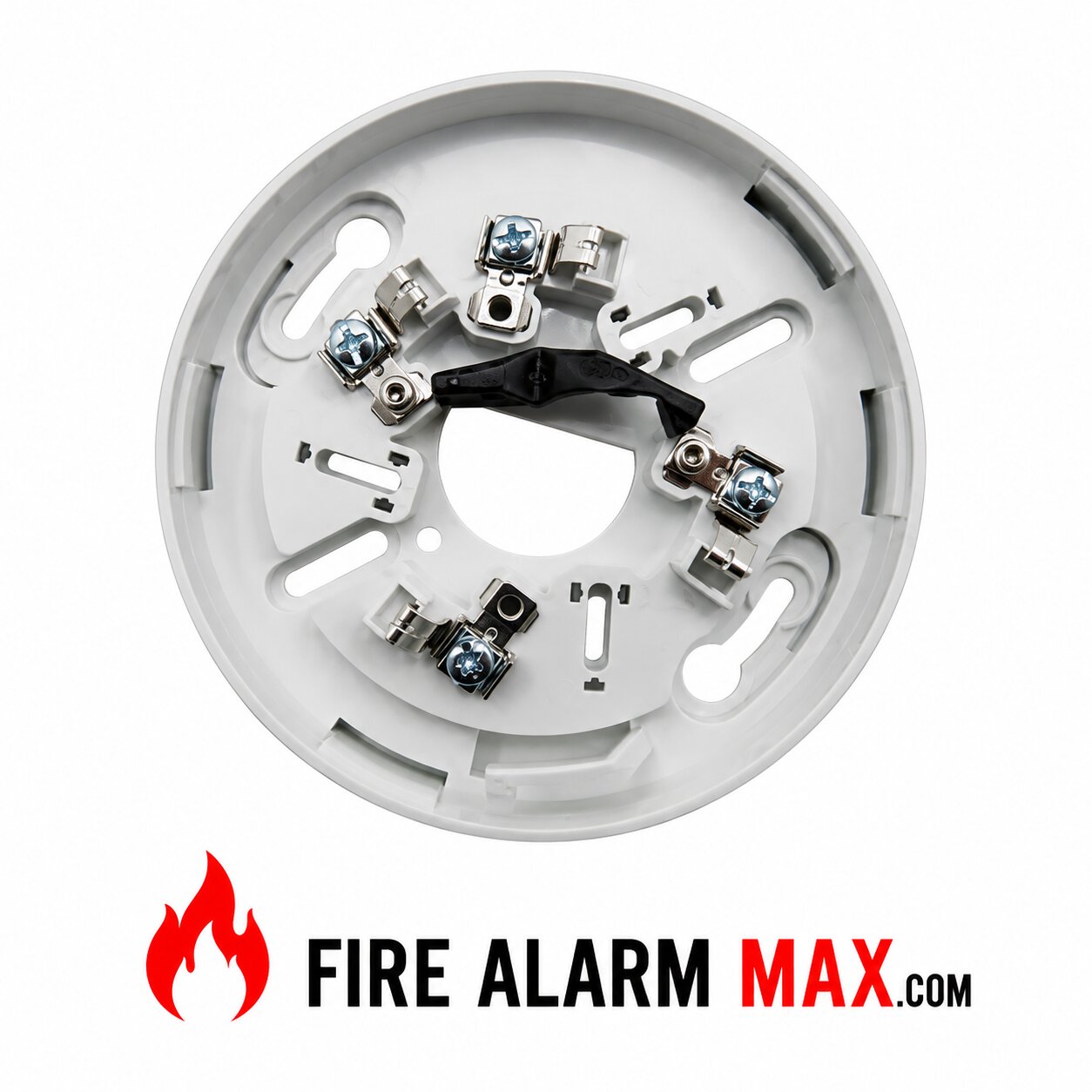

The standard base for Signature Series detectors. Connects the detector to the signaling line circuit (SLC). Provides wiring terminals for connection to a GSA-LED.

To install the KI-SB:

1. Mount the KI-SB on a compatible electrical box using the screws provided with the electrical box.
2. Wire the base as shown in the “Wiring” section
3. Write the address assigned to the detector on the label provided. Apply the label to the inside rim of the base.
4. Use a GSA-TS trim skirt to finish the installation as needed.

To wire the KI-SB:

1. Wire the detector base.
2. Break the wire run at each terminal. Do not loop the signaling line circuit field wires around the terminals.
3. Insulate the shield with electrical tape.

Edwards KI-SB

The standard base for Signature Series detectors. Connects the detector to the signaling line circuit (SLC). Provides wiring terminals for connection to a GSA-LED.

To install the KI-SB:

1. Mount the KI-SB on a compatible electrical box using the screws provided with the electrical box.
2. Wire the base as shown in the “Wiring” section
3. Write the address assigned to the detector on the label provided. Apply the label to the inside rim of the base.
4. Use a GSA-TS trim skirt to finish the installation as needed.

To wire the KI-SB:

1. Wire the detector base.
2. Break the wire run at each terminal. Do not loop the signaling line circuit field wires around the terminals.
3. Insulate the shield with electrical tape.
