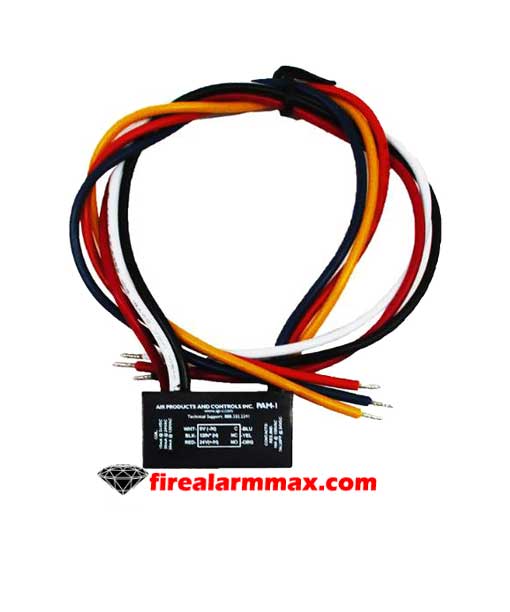

The Space Age SSU-PAM-1 is a multi-voltage control relay module designed to provide reliable switching and interfacing between low-voltage control systems and external equipment. The Space Age SSU-PAM-1 features a versatile SPDT relay output, broad input voltage compatibility, and compact construction, making it ideal for fire alarm, HVAC, security, access control, and building automation applications. Therefore, it serves as a dependable solution for controlling a wide variety of electrical devices and systems.

Space Age SSU-PAM-1 Function

The SSU-PAM-1 is designed to receive a control signal and activate an internal relay that can switch connected equipment or circuits. As a result, it allows fire alarm panels, building automation systems, and security systems to interface with external devices such as fans, dampers, door holders, lighting controls, and notification equipment. In addition, the relay provides isolation between control circuits and controlled loads for improved system reliability.

Multi-Voltage Input Compatibility

The Space Age SSU-PAM-1 supports a wide range of operating voltages, allowing a single relay module to be used across multiple system types. Consequently, installers can reduce inventory requirements and simplify system design. Furthermore, multi-voltage operation makes the relay suitable for both retrofit and new construction projects.

SPDT Relay Contacts

The SSU-PAM-1 incorporates Single Pole Double Throw (SPDT) contacts that provide normally open and normally closed switching options. Therefore, it can be used for a variety of control functions including activation, shutdown, transfer switching, and status monitoring. Additionally, the SPDT configuration increases application flexibility.

LED Status Indication

The relay module includes a built-in LED indicator that illuminates when the relay is energized. As a result, technicians can quickly verify relay operation during installation, testing, and maintenance. Moreover, visual indication simplifies troubleshooting and system diagnostics.

Compact Interface Module Design

The Space Age SSU-PAM-1 features a compact form factor that allows installation inside control panels, junction boxes, and equipment enclosures. Consequently, it can be integrated into space-limited applications without requiring additional mounting hardware. Furthermore, the small footprint makes it ideal for retrofit installations.

Fire Alarm and Building System Integration

The SSU-PAM-1 is commonly used to interface with:

• Fire alarm control panels
• HVAC systems
• Smoke control systems
• Fan shutdown circuits
• Magnetic door holders
• Security systems
• Access control systems
• Building automation systems
• Lighting control systems
• Elevator interface circuits

Therefore, it provides versatile control functionality across numerous life safety and building management applications.

Reliable Relay Operation

The relay is engineered for continuous-duty operation and dependable long-term performance. As a result, it can be used in critical life safety applications where reliable control functions are essential. Additionally, the relay contacts are designed to handle a variety of resistive and inductive loads.

Technical Specifications

• Model: SSU-PAM-1
• Manufacturer: Space Age Electronics
• Type: Multi-Voltage Control Relay Module
• Contact Configuration: SPDT (Form C)
• Relay Type: Electromechanical Relay
• Input Voltage: Multi-Voltage Compatible
• Status Indicator: LED
• Operation: Continuous Duty
• Mounting: Panel or Junction Box Installation
• Application: Control and Interface Relay
• Wiring Connections: Screw Terminal
• Isolation: Electrical Isolation Between Control and Load Circuits
• Suitable Systems: Fire Alarm, HVAC, Security, Access Control, Building Automation
• Environmental Use: Indoor Applications
• Construction: Compact Relay Module
• Listings: UL Recognized Component

Applications

The Space Age SSU-PAM-1 is ideal for:

• Fire alarm relay control
• HVAC shutdown applications
• Smoke control systems
• Security system integration
• Access control systems
• Building automation systems
• Fan control circuits
• Door holder release circuits
• Elevator interface applications
• Lighting control systems
• Commercial buildings
• Industrial facilities

Reliable Multi-Voltage Interface Solution

The Space Age SSU-PAM-1 combines multi-voltage operation, SPDT relay contacts, LED status indication, compact installation, and dependable switching performance in a versatile control relay module. Overall, it provides a reliable interface solution for fire alarm, HVAC, security, and building automation systems while simplifying installation and improving overall system functionality.
