Description

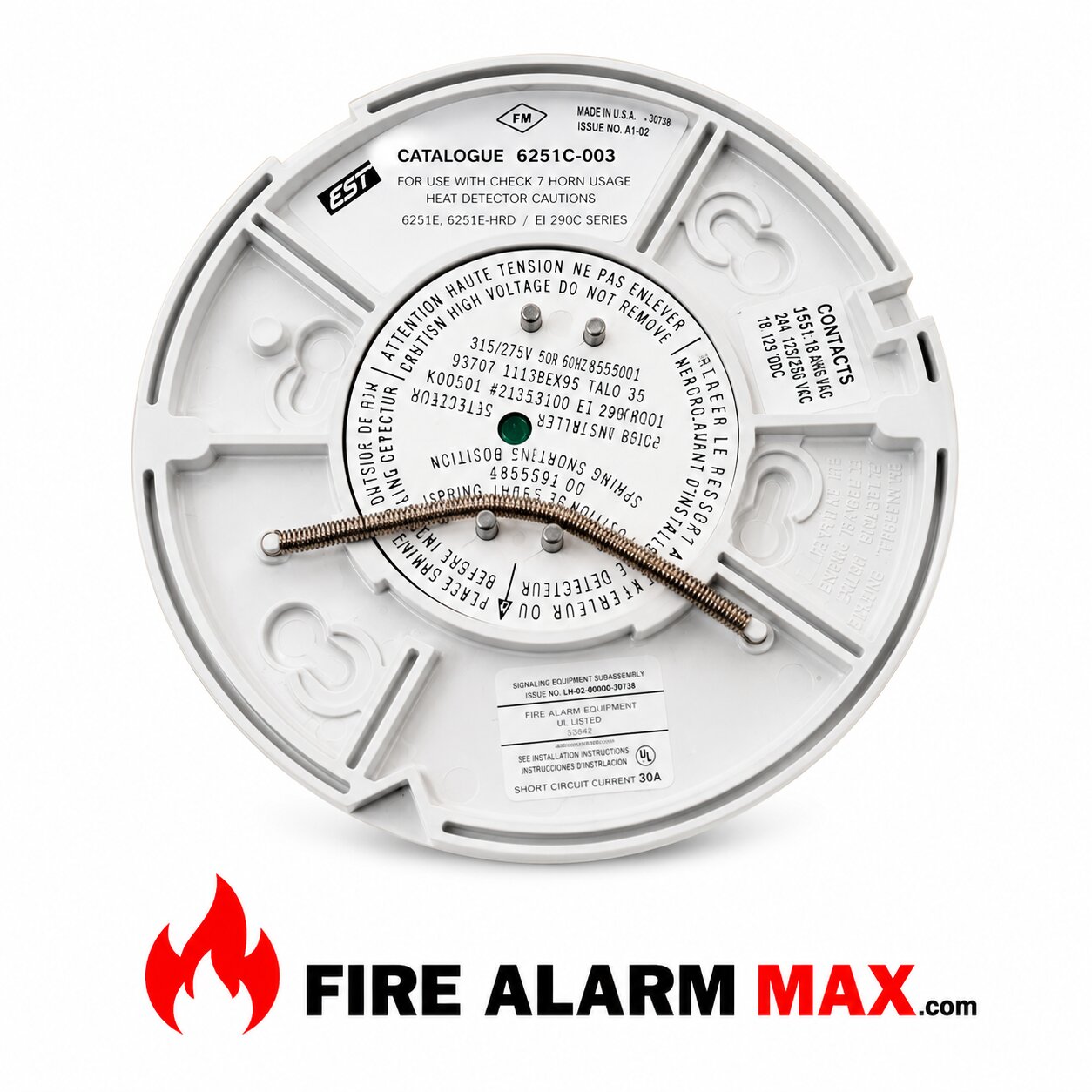

The Edwards 6251C-003 is an intelligent detector base with an integrated auxiliary relay designed for use with compatible Edwards Signature Series smoke and heat detectors. The Edwards 6251C-003 combines detector mounting functionality with relay control capability, allowing fire alarm systems to activate external devices directly from the detector location. Therefore, it provides a flexible and efficient solution for HVAC shutdown, door release, fan control, and other life safety control applications.

Edwards 6251C-003 Function

The 6251C-003 serves as both a mounting base and a control interface for compatible Edwards Signature Series detectors. As a result, the detector can initiate relay-controlled actions when programmed by the fire alarm control panel. In addition, the auxiliary relay allows external equipment to be activated or deactivated in response to fire alarm events, supervisory conditions, or custom system programming.

Integrated Auxiliary Relay

The Edwards 6251C-003 incorporates an onboard auxiliary relay that provides local control functionality directly at the detector location. Consequently, system designers can eliminate additional control modules in certain applications, reducing installation costs and wiring complexity. Furthermore, local relay control improves flexibility when interfacing with building systems.

Form C Relay Contacts

The auxiliary relay provides Form C (SPDT) contacts, allowing support for both normally open and normally closed control applications. Therefore, the base can be used for a wide variety of life safety and building automation functions. Additionally, the relay design offers dependable switching performance for critical control operations.

Signature Series Detector Compatibility

The 6251C-003 is designed specifically for use with Edwards Signature Series intelligent detectors, including:

• Signature Series Photoelectric Smoke Detectors
• Signature Series Ionization Smoke Detectors
• Signature Series Heat Detectors
• Signature Series Multi-Criteria Detectors

Consequently, it provides seamless integration into Edwards intelligent fire alarm systems while maintaining advanced detection and control capabilities.

Intelligent Addressable System Integration

The Edwards 6251C-003 operates within Signature Series intelligent fire alarm networks. As a result, detector status, relay operation, and device supervision are continuously monitored by the fire alarm control panel. Moreover, intelligent communications improve troubleshooting, maintenance, and overall system reliability.

HVAC and Building Control Applications

The auxiliary relay function is commonly used for:

• HVAC shutdown
• Fan control
• Smoke control systems
• Magnetic door holder release
• Elevator interface functions
• Security system integration
• Building automation interfaces
• Fire damper control
• Remote annunciation circuits

Therefore, the 6251C-003 serves as a versatile interface between fire alarm systems and building equipment.

Simplified Installation

The detector base is designed for fast installation and maintenance within Edwards Signature Series systems. Consequently, wiring can be completed quickly while maintaining proper supervision and communication. Furthermore, detector heads can be replaced without disturbing field wiring connected to the base.

Technical Specifications

• Model: 6251C-003
• Manufacturer: Edwards
• Type: Intelligent Detector Base with Auxiliary Relay
• Relay Type: Form C (SPDT)
• Function: Detector Mounting and Auxiliary Control
• Compatible Detectors: Edwards Signature Series Intelligent Detectors
• System Type: Addressable Fire Alarm Systems
• Communication Method: Signature Series Intelligent Communications
• Mounting: Standard Electrical Back Box
• Installation: Indoor Use
• Application: Fire Alarm and Building Control Interface
• Relay Control: Programmable Through Compatible Control Panels
• Wiring: Supervised Fire Alarm System Wiring
• Construction: Fire-Resistant Engineering Plastic
• Color: White
• Listings: UL Listed when used with compatible Edwards Signature Series systems

Applications

The Edwards 6251C-003 is ideal for:

• Fire alarm systems
• HVAC shutdown control
• Smoke control systems
• Fan shutdown applications
• Door holder release systems
• Elevator interface control
• Building automation integration
• Commercial office buildings
• Healthcare facilities
• Educational campuses
• Government facilities
• Industrial facilities

Reliable Detector Base and Control Solution

The Edwards 6251C-003 combines intelligent detector mounting, Form C auxiliary relay functionality, Signature Series compatibility, and programmable control capabilities in a single compact device. Overall, it provides a reliable and efficient solution for integrating fire alarm detection with critical building control functions while simplifying installation and improving system flexibility.

6251C-003 Datasheet
